Electromagnetic Chuck Controller - SD Series

Name: Electromagnetic Chuck Controller - SD Series
Brand: Magnetool, Inc.
SKU: SDS-ed553f
Price: 499.99 USD
Availability: OutOfStock

SKU:SDS-ed553f

Efficiently control chuck demagnetization with the SD Series Electromagnetic Chuck Controller. Precise power settings ensure optimal performance.

$499.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

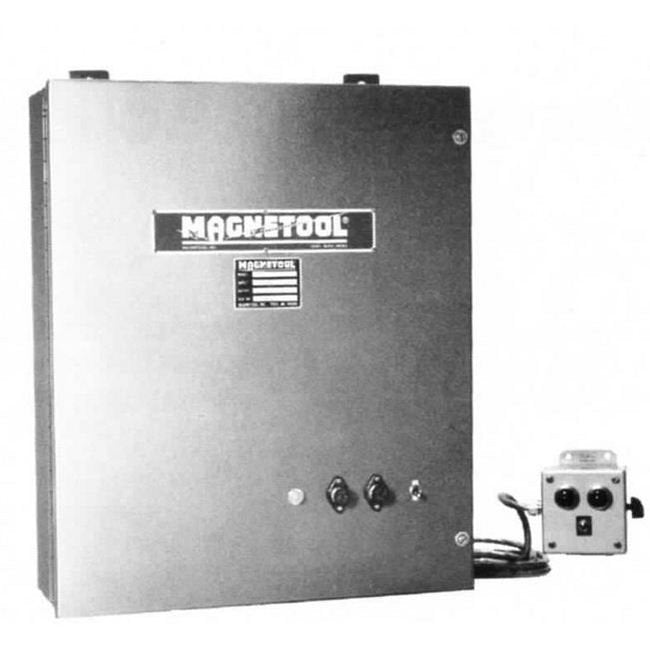

The SD Series Automatic Electromagnetic Chuck Controller is ideal for applications requiring high chuck demagnetization and chucks with substantial wattage ratings. Featuring a main enclosure that can be rear-mounted or wall-mounted, this controller ensures efficient operation. The compact front enclosure includes an On-Off control switch, green and red indicator lights, and a variable power switch for precise power control from 0 to 100%. This controller facilitates easy part removal and enhances operational flexibility.

Product Specifications

Additional Information 0

The green light indicates power is on. The red light indicates the chuck has power. When the control switch is turned to "Mag-Off" the red light will gradually fade out. The operator can then remove the work with ease. The variable power switch on the side can be dialed for full power to residual.

Specifications Ac Input Voltage

240 V | 480 V

Specifications Advantages

The operator can then remove the part with ease. The variable power control provides 0 to 100% power.

Specifications Dc Output Voltage

0 to 230 V

Specifications Main Enclosure Depth

7 in

Specifications Main Enclosure Height

20 in

Specifications Main Enclosure Width

16 in

Specifications Power

500 W

Electromagnetic Chuck Controller - SD Series
