Electromagnetic Chuck Controller - SD Series
Electromagnetic Chuck Controller - SD Series
SKU:SDS-bf5154
Maximize demagnetization control with the SD Series Electromagnetic Chuck Controller. Ideal for high-wattage chucks with adjustable power settings.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Electromagnetic Chuck Controller - SD Series
$899.99
Quantity: 1
Claim Your Seller Account
Electromagnetic Chuck Controller - SD Series
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

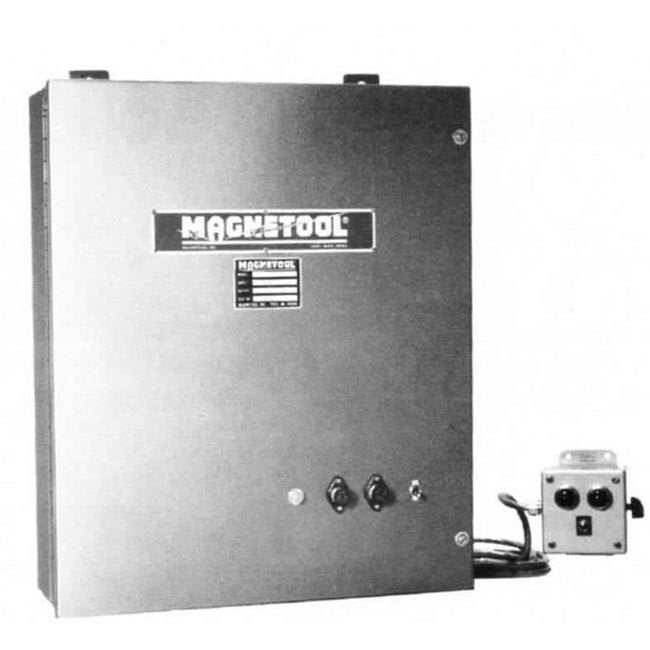

The Electromagnetic Chuck Controller - SD Series offers superior demagnetization control for high-wattage chucks. With a power rating of 1000W, AC input voltage options of 240V or 480V, and variable power settings from 0 to 100%, this controller ensures efficient operations. The compact design includes a main enclosure for easy access and control switches for seamless operation. The presence of green and red lights enhances monitoring and safety, while compliance with industry standards guarantees optimal performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information 0
The green light indicates power is on. The red light indicates the chuck has power. When the control switch is turned to "Mag-Off" the red light will gradually fade out. The operator can then remove the work with ease. The variable power switch on the side can be dialed for full power to residual.
Specifications Ac Input Voltage
240 V | 480 V
Specifications Advantages
The operator can then remove the part with ease. The variable power control provides 0 to 100% power.
Specifications Dc Output Voltage
0 to 230 V
Specifications Main Enclosure Depth
9 in
Specifications Main Enclosure Height
20 in
Specifications Main Enclosure Width
16 in
Specifications Power
1000 W
