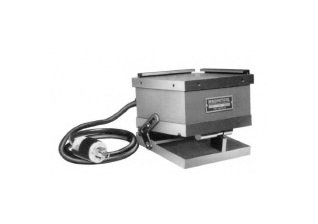

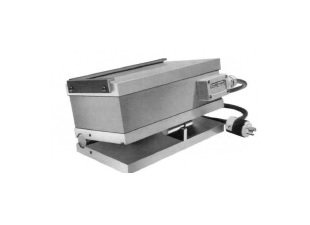

Electromagnetic Compound Angle Sine Plate 6x6 Magnetic Chuck

Name: Electromagnetic Compound Angle Sine Plate 6x6 Magnetic Chuck
Brand: Magnetool, Inc.
SKU: ELE-4293c0
Price: 699.99 USD
Availability: OutOfStock

SKU:ELE-4293c0

Achieve precise angular setups quickly with the Electromagnetic Compound Angle Sine Plate. Durable, high-power magnetic chuck for secure and stable positioning.

$699.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Electromagnetic Compound Angle Sine Plate by MAGNETOOL is a precision-engineered tool for quick and accurate angular setups. This Permanent Magnetic Sine Plate features high-power Ceramic magnets for consistent strength. The top plates are steel and stainless steel furnace brazed, ensuring durability and stability. With a standard pole spacing of 3/8 inch and a surface area of 6 x 6 square inches, this Sine Plate is capable of securely holding a wide range of workpieces. Made of SAE .8620 Steel Carburized, the Material Hardness of 58-60 Rockwell C ensures reliability and longevity. Tolerance in squareness, parallelism, and roll precision meets industry standards, making it ideal for precision machining applications.

Product Specifications

Additional Information 0

Tolerance in squareness, parallelism and between rolls on 363 and 66 is .0002; 612 is .0003; 618 is .0004. Plates and rolls are made of SAE .8620 steel carburized and hardened to 58-60 Rockwell "C" scale.

Specifications Height

5 5/8 in

Specifications Material Hardness

58 to 60 Rockwell C

Specifications Plate And Roll Material

SAE .8620 Steel Carburized

Specifications Sine

5.000

Specifications Standard Pole Spacing

3/8 in

Specifications Surface Area

6 x 6 inÂ²

Specifications Type

Compound Angle

Specifications Weight

53 lb
