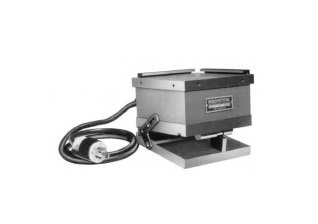

Electromagnetic Single Angle Sine Plate for Precise Angular Setups
Electromagnetic Single Angle Sine Plate for Precise Angular Setups
SKU:ELE-1a2bf0
Achieve precise angular setups swiftly and accurately with the high-powered Electromagnetic Single Angle Sine Plate by MAGNETOOL.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
Electromagnetic Single Angle Sine Plate for Precise Angular Setups
$399.99
Quantity: 1
Claim Your Seller Account
Electromagnetic Single Angle Sine Plate for Precise Angular Setups
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Electromagnetic Single Angle Sine Plate by MAGNETOOL offers rapid and accurate angular setups for diverse applications. Crafted with high-power Ceramic magnets ensuring constant strength, this Sine Plate features a top plate composed of steel and stainless steel, fused into a sturdy single unit. With a SAE .8620 Steel Carburized Plate and Roll Material hardened to 58-60 Rockwell C, it provides exceptional durability. The standard pole spacing of 3/8 in can securely hold a wide range of workpieces. Designed for precision, this Sine Plate boasts unrivaled tolerance, making it ideal for industrial settings.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information 0
Tolerance in squareness, parallelism and between rolls on 363 and 66 is .0002; 612 is .0003; 618 is .0004. Plates and rolls are made of SAE .8620 steel carburized and hardened to 58-60 Rockwell "C" scale.
Specifications Height
4 3/8 in
Specifications Material Hardness
58 to 60 Rockwell C
Specifications Plate And Roll Material
SAE .8620 Steel Carburized
Specifications Sine
5.000
Specifications Standard Pole Spacing
3/8 in
Specifications Surface Area
6 x 6 in²
Specifications Type
Single Angle
Specifications Weight
45 lb
