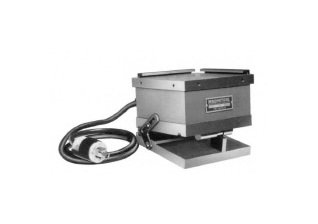

Electromagnetic Single Angle Sine Plate - Precision Angular Setup Tool

Name: Electromagnetic Single Angle Sine Plate - Precision Angular Setup Tool
Brand: Magnetool, Inc.
SKU: ELE-554cc3
Price: 799.99 USD
Availability: OutOfStock

SKU:ELE-554cc3

High-quality Electromagnetic Single Angle Sine Plate for precise angular setups, featuring durable construction and exceptional stability.

$799.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Electromagnetic Single Angle Sine Plate is a high-quality tool designed for precise angular setups in various industrial applications. Manufactured by MAGNETOOL, this Permanent Magnetic Sine Plate features a durable construction with high-power Ceramic magnets ensuring long-lasting performance. The top plates, made of steel and stainless steel furnace brazed into a single solid plate, provide exceptional stability during operations. With a Sine of 15.000, Height of 5 5/8 in, and Weight of 176 lb, this tool offers accurate angle adjustments with a Surface Area of 6 x 18 in². The plate and roll material, SAE .8620 Steel Carburized, guarantees a material hardness of 58 to 60 Rockwell C, meeting high industry standards for precision and reliability. Additionally, the tolerances in squareness, parallelism, and between rolls ensure outstanding accuracy and performance.

Product Specifications

Additional Information 0

Tolerance in squareness, parallelism and between rolls on 363 and 66 is .0002; 612 is .0003; 618 is .0004. Plates and rolls are made of SAE .8620 steel carburized and hardened to 58-60 Rockwell "C" scale.

Specifications Height

5 5/8 in

Specifications Material Hardness

58 to 60 Rockwell C

Specifications Plate And Roll Material

SAE .8620 Steel Carburized

Specifications Sine

15.000

Specifications Standard Pole Spacing

3/8 in

Specifications Surface Area

6 x 18 inÂ²

Specifications Type

Single Angle

Specifications Weight

176 lb
