Ellis 9400 Commercial Drill Press
Ellis 9400 Commercial Drill Press
SKU:DRI-6738fc
Enhance drilling precision with the Ellis 9400 Commercial Drill Press, featuring variable speed controls and high torque capabilities for efficient tapping operations.
Regular price
$4,299.99
Regular price
Sale price
$4,299.99
Unit price
per
Initiate Order
Ellis 9400 Commercial Drill Press
$4,299.99
Quantity: 1
Claim Your Seller Account
Ellis 9400 Commercial Drill Press
$4,299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

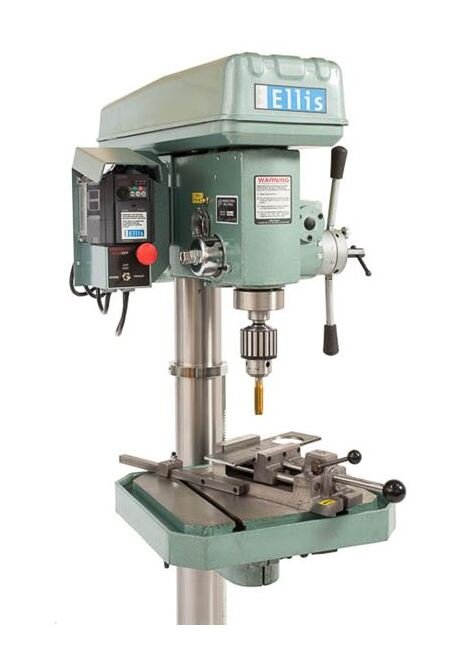

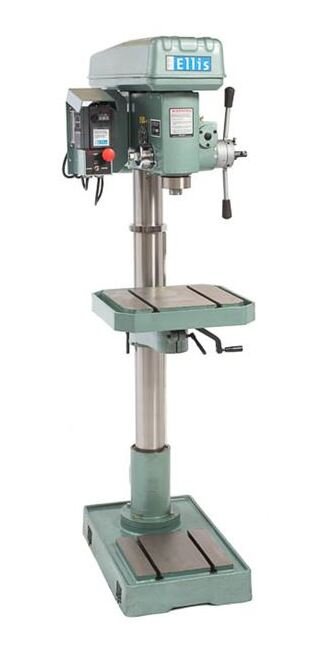

The Ellis 9400 Commercial Drill Press offers superior drilling capabilities with technical precision suitable for both consumer and institutional buyers. Featuring a powerful 2 HP motor and variable speed controls ranging from 0 to 1200 RPM, this drill press provides high torque at low speeds and instantaneous electronic reversing, making it ideal for a wide range of drilling and tapping applications. The machine's solid state circuitry, continuous speed adjustment, and versatile tapping capabilities enhance operational efficiency and accuracy. With a sturdy construction and user-friendly design, the Ellis 9400 ensures reliable performance in demanding industrial settings.
Product Specifications
Features Features
Variable speed from 0 to 1200 rpmAdjust speeds while operating in the materialHigh torque at low rpm speedsInstantaneous reversing for tappingTapping head is not neededMachine tap goes into ball bearing chuckCan tap either left or right handed threadsDrill head and table rotate 360° around columnSmooth operating table raiserFully enclosed spindleQuill lock and depth controlSame ball bearing chuck holds both drill and tap
Technical Specs Base Dimensions
16-3/8 x 26-5/8 in
Technical Specs Brands
Ellis
Technical Specs Column Diameter
4 in

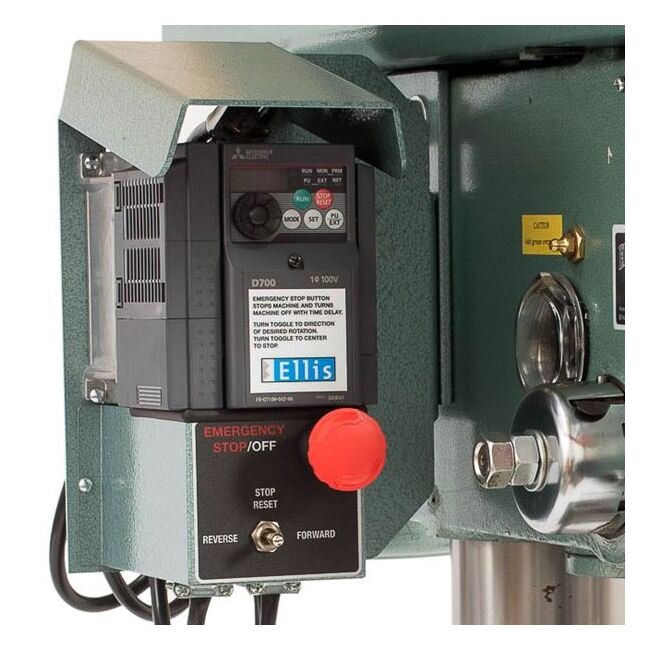

Technical Specs Control Box
- Infinitely variable speed with a turn of the dial- Instantaneous electronic reversing- Full torque at low peeds- All solid state circuitry- Continuous speed adjustment while in operation
Technical Specs Depth
29 in
Technical Specs Distance Spindle To Table Max
27-1/4 in
Technical Specs Drilling Capacity Cast Iron
1 -1/4 in
Technical Specs Drilling Capacity Steel
1-1/16 in
Technical Specs Drills Center
18-1/8 in
Technical Specs Height
69-1/2 in
Technical Specs Morse Taper
3
Technical Specs Motor Horse Power Hp
2 hp
Technical Specs Quill Diameter
3 in
Technical Specs Range Of Spindle Speeds Revolution Per Minute Rp
0 to 1200 rpm
Technical Specs Shipping Weight
675 lb
Technical Specs Single Phase Alternating Current
110 V | 220 V
Technical Specs Speed Control
Continuous speed adjustment while in operationInstantaneous reversing for tappingOne turn on knob for adjusting speed (0 to 1200 rpm)
Technical Specs Spindle Base
46-1/4
Technical Specs Spindle Travel
5-3/8 in
Technical Specs Tapping Capacity
3/4 in
Technical Specs Width
20 in
