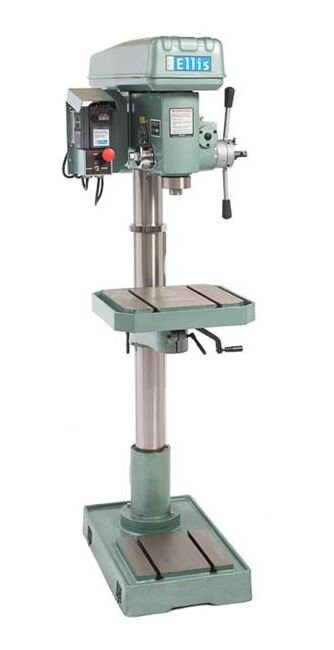

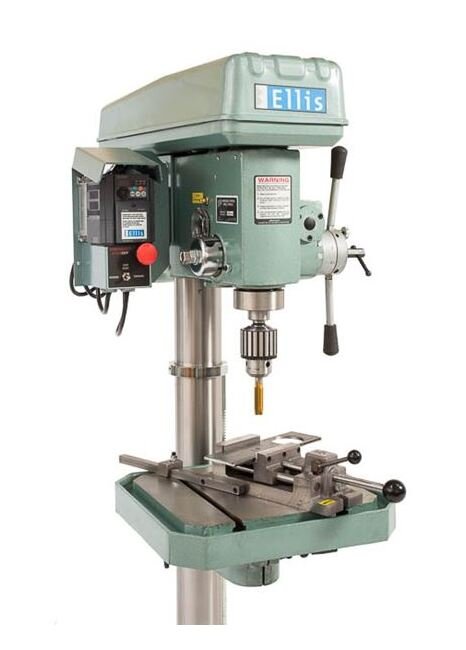

Ellis 9400 Industrial Drill Press
Ellis 9400 Industrial Drill Press
SKU:DRI-b8f6d8
Powerful, precise, and versatile industrial drill press for efficient drilling and tapping operations.
Regular price
$5,899.99
Regular price
Sale price
$5,899.99
Unit price
per
Initiate Order
Ellis 9400 Industrial Drill Press
$5,899.99
Quantity: 1
Claim Your Seller Account
Ellis 9400 Industrial Drill Press
$5,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Model 9400 Ellis Drill Press is a powerhouse designed for precision drilling and tapping operations. Featuring an infinitely variable speed control, high torque at low speeds, and a solid-state circuitry control box, this drill press offers unparalleled efficiency. With a steel drilling capacity of 1-1/16 in and a cast iron drilling capacity of 1-1/4 in, it can tackle a wide range of materials. The machine tap goes into a ball bearing chuck, allowing for both left and right-handed threading. The Ellis 9400 ensures smooth operation with its fully enclosed spindle, quill lock, and depth control. Whether for industrial or government use, this drill press delivers exceptional performance and durability.
Product Specifications
Additional Information Additional Information
Continuous speed adjustment while in operationInstantaneous reversing for tappingOne turn on knob for adjusting speed (0 to 1200 rpm)
Features Features
Adjust speeds while operating in the materialHigh torque at low rpm speedsInstantaneous reversing for tappingTapping head is not neededMachine tap goes into ball bearing chuckCan tap either left or right handed threadsDrill head and table rotate 360° around columnSmooth operating table raiserFully enclosed spindleQuill lock and depth controlSame ball bearing chuck holds both drill and tap
Technical Specs Base
T-slotted16-3/8" x 26-5/8"2 slots for 1/2" T-boltsground working surface
Technical Specs Brands
Ellis
Technical Specs Cast Iron Drilling Capacity
1-1/4 in

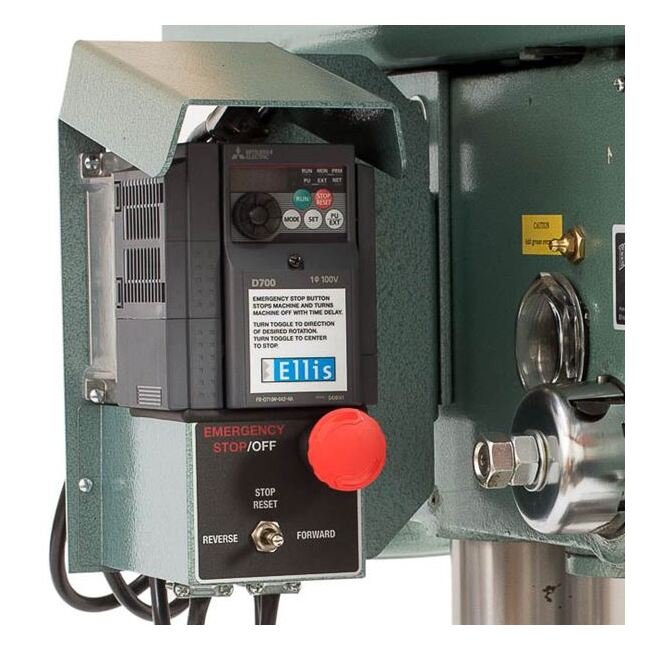

Technical Specs Control Box
- Infinitely variable speed with a turn of the dial- Instantaneous electronic reversing- Full torque at low speeds- All solid state circuitry- Continuous speed adjustment while in operation
Technical Specs Depth
29 in
Technical Specs Drills Center
18-1/8 in
Technical Specs Height
6 in | 9-1/2 in
Technical Specs Maximum Spindle Table
27-1/4 in
Technical Specs Morse Taper
3
Technical Specs Quill Diameter
3 in
Technical Specs Shipping Weight
675 lb
Technical Specs Single Phase 2 Hp Alternating Current Ac Motor
110 V | 220 V
Technical Specs Speed
0 to 1200 rpm
Technical Specs Spindle Base
46-1/4 in
Technical Specs Spindle Travel
5-3/8 in
Technical Specs Steel Drilling Capacity
1-1/16 in
Technical Specs Table
Production type:T-slotted 15-7/8" x 17-7/8"2 Slots for 1/2" T-boltsground working surfacecoolant trough
Technical Specs Tapping Capacity
3/4 in
Technical Specs Width
20 in
