EM/EF Rod End LH

EM/EF Rod End LH

PUS-f94faf

Enhance mechanical motion transfer with EM/EF Rod End LH: 2-piece metal design for high axial load capacity & durability. Ideal for construction/transport equipment, -65 to 250 ºF range.

$29.99
$29.99
Sale

Initiate Order

EM/EF Rod End LH

EM/EF Rod End LH

$29.99

Quantity: 1

Claim Your Seller Account

EM/EF Rod End LH

EM/EF Rod End LH

$29.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

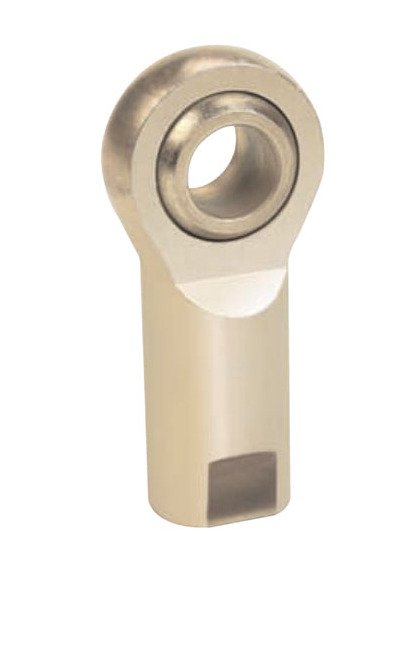

The EM/EF Rod End LH is a versatile 2-piece, metal-to-metal rod end specifically designed for demanding applications requiring high axial load capacity and resilience to side loading. With a ball bore of 0.2500" and a wide temperature range from -65 to 250 ºF, this rod end is ideal for various mechanical motion transfer applications in industries such as construction equipment, lawn and garden, and truck/bus sectors. Its low carbon steel construction, zinc plated with yellow dichromate treatment, ensures durability and longevity even in harsh operating conditions. With a static load capacity of 3470 lb, this rod end offers a cost-effective solution without compromising performance.

Product Specifications

Applications 0
Numerous mechanical motion transfer devices/applications, including:Construction equipmentLawn and gardenTruck/bus
Features 0
2-piece metal to metal design offers our most economical optionSuited for higher axial load where side loading strength is criticalCan be used in a wide range of temperatures: -65 ºF - 250 ºF(-54 ºC - 121 ºC)Offered in studded and right or left-handed versionsCustom assemblies can be built to your specificationsMeets SAE spec J1120
Material 0
Ball - Low Carbon Steel, Case Hardened Zinc Plated, Yellow Dichromate TreatedBody - Low Carbon Steel Zinc Plated, Yellow Dichromate Treated

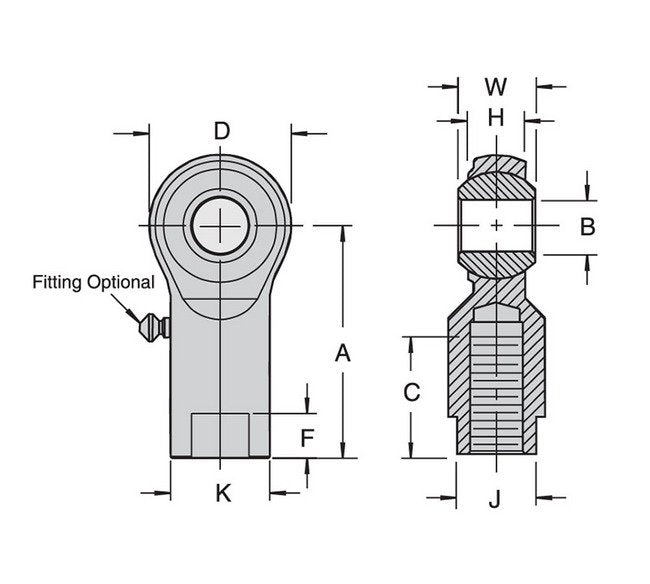

Specifications Ball Bore B 00020 00000
0.2500 "
Specifications Ball Diameter Ref
0.469 "
Specifications Ball Width W 0005
0.375 "
Specifications Centerline Length A 0015
1.312 "
Specifications Head Diameter D 0015
0.750 "
Specifications Housing Width H Ref
0.281 "
Specifications Note
For standard lubrication fitting, add "Z" to suffix. Example: EM10ZZerks not available on 3/8" or 10 mm and smaller rod ends.This series is also available in a studded configuration. Specify by adding "S" to suffix. Example: EM10S
Specifications Shank Diameter K 0015
0.469 "
Specifications Temperature Range
-65 to 250 ºF | -54 to 121 ºC
Specifications Thread Length C 0060
0.687 "
Specifications Thread Size Unf 2b
1/4-28 "
Specifications Type
Female
Specifications Ultimate Radial Static Load Capacity
3470 lb
Specifications Weight
0.062 lb
Specifications Wrench Flat Length F 0030
0.250 "
Specifications Wrench Flat Width J 0015
0.375 "
Studded Dimensions L Ref
0.469 "
Studded Dimensions Min Thread Length S
0.500 "
Studded Dimensions P 0030
0.563 "
Studded Dimensions Rod End Bore Size
1/4 "
Studded Dimensions Thread Size N Unf 2a
1/4-28 "
CAGE
0T9L4
NAICS
332510
PSC
4030
