EM/EF Rod End LH 2-Piece Metal to Metal

Name: EM/EF Rod End LH 2-Piece Metal to Metal
Brand: Lexco Cable Manufacturing
SKU: PUS-d28934
Price: 24.99 USD
Availability: OutOfStock

SKU:PUS-d28934

Durable EM/EF Rod End LH for high axial load applications, versatile in extreme temperatures. Customizable and SAE J1120 compliant.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

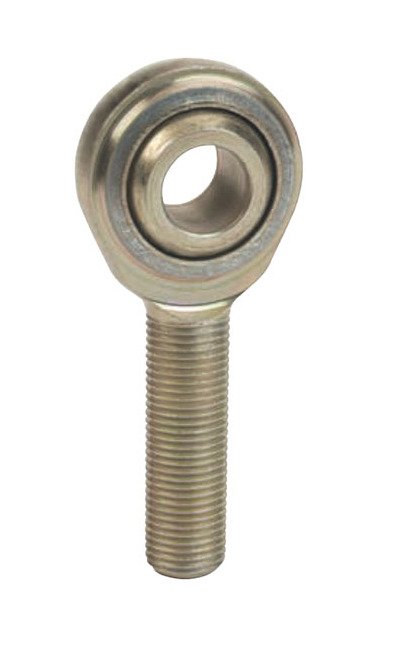

The EM/EF Rod End LH is a precision-engineered 2-piece metal to metal rod end designed for exceptional performance in numerous mechanical motion transfer applications. With a ball bore diameter of 0.3750", it offers high axial load capacity, critical for applications requiring robust side loading strength. This rod end can operate effectively in temperatures ranging from -65 Ã‚ÂºF to 250 Ã‚ÂºF, making it versatile for a wide range of environments. Additionally, custom assemblies can be tailored to meet specific requirements, ensuring optimal compatibility. Compliant with SAE spec J1120, this rod end provides a cost-effective solution without compromising on quality.

Product Specifications

Applications 0

Numerous mechanical motion transfer devices/applications, including:Construction equipmentLawn and gardenTruck/bus

Features 0

2-piece metal to metal design offers our most economical optionSuited for higher axial load where side loading strength is criticalCan be used in a wide range of temperatures: -65 ÂºF - 250 ÂºF(-54 ÂºC - 121 ÂºC)Offered in studded and right or left-handed versionsCustom assemblies can be built to your specificationsMeets SAE spec J1120

Material 0

Ball - Low Carbon Steel, Case Hardened Zinc Plated, Yellow Dichromate TreatedBody - Low Carbon Steel Zinc Plated, Yellow Dichromate Treated

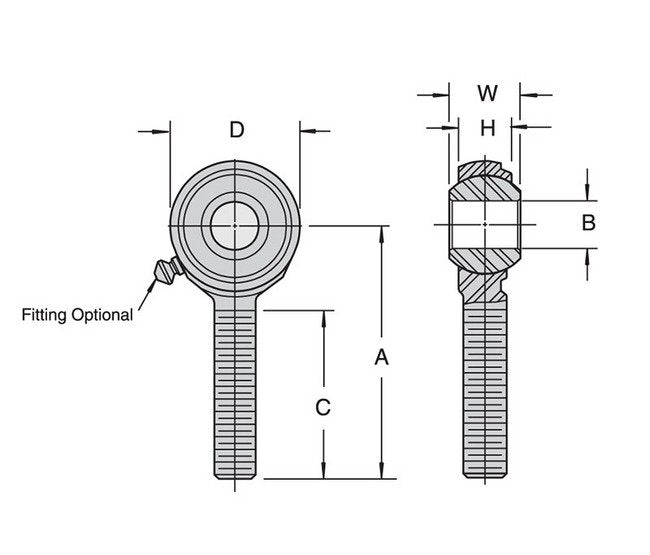

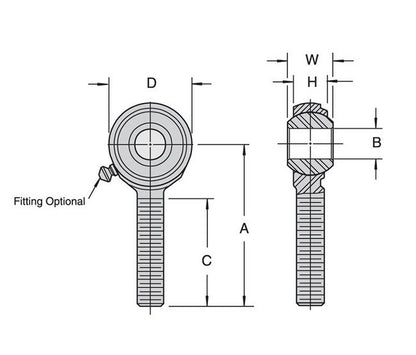

Specifications Ball Bore B 00020 00000

0.3750 "

Specifications Ball Diameter Ref

0.719 "

Specifications Ball Width W 0005

0.500 "

Specifications Centerline Length A 0015

1.937 "

Specifications Head Diameter D 0015

1.000 "

Specifications Housing Width H Ref

0.406 "

Specifications Note

For standard lubrication fitting, add "Z" to suffix. Example: EM10ZZerks not available on 3/8" or 10 mm and smaller rod ends.This series is also available in a studded configuration. Specify by adding "S" to suffix. Example: EM10S

Specifications Temperature Range

-65 to 250 ÂºF | -54 to 121 ÂºC

Specifications Thread Length C 0060

1.250 "

Specifications Thread Size Unf 2a

3/8-24 "

Specifications Type

Male

Specifications Ultimate Radial Static Load Capacity

5520 lb

Specifications Weight

0.110 lb

Studded Dimensions L Ref

0.625 "

Studded Dimensions Min Thread Length S

0.781 "

Studded Dimensions P 0030

0.875 "

Studded Dimensions Rod End Bore Size

3/8 "

Studded Dimensions Thread Size N Unf 2a

3/8-24 "

CAGE

0T9L4

NAICS

332510

PSC

4030
