EM/EF Rod Ends LH

EM/EF Rod Ends LH

PUS-d11313

High-performance EM/EF Rod Ends LH for precise mechanical motion transfer in various applications. Durable construction with wide temperature range.

$32.99
$32.99
Sale

Initiate Order

EM/EF Rod Ends LH

EM/EF Rod Ends LH

$32.99

Quantity: 1

Claim Your Seller Account

EM/EF Rod Ends LH

EM/EF Rod Ends LH

$32.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

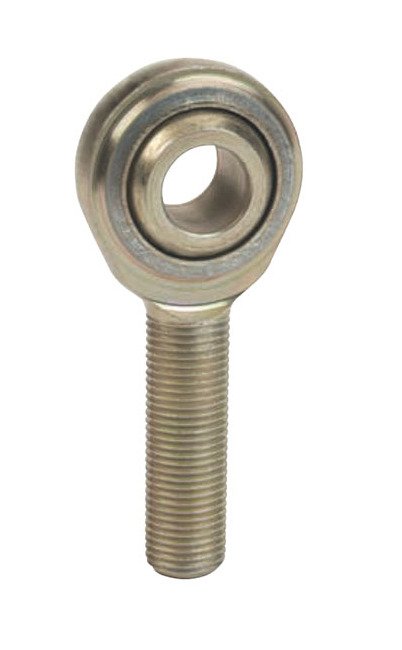

The EM/EF Rod Ends LH are premium 2-piece metal to metal rod ends designed for exceptional performance in various mechanical motion transfer applications. These rod ends boast a robust construction, featuring low carbon steel with zinc plating and yellow dichromate treatment for enhanced durability. With a ball bore of 0.3125" and a wide temperature range of -65 ºF to 250 ºF (-54 ºC to 121 ºC), these rod ends offer reliable operation in diverse conditions. Ideal for construction equipment, lawn and garden, truck/bus applications, these rod ends excel in higher axial load scenarios where side loading strength is crucial.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Applications 0
Numerous mechanical motion transfer devices/applications, including:Construction equipmentLawn and gardenTruck/bus
Features 0
2-piece metal to metal design offers our most economical optionSuited for higher axial load where side loading strength is criticalCan be used in a wide range of temperatures: -65 ºF - 250 ºF(-54 ºC - 121 ºC)Offered in studded and right or left-handed versionsCustom assemblies can be built to your specificationsMeets SAE spec J1120
Material 0
Ball - Low Carbon Steel, Case Hardened Zinc Plated, Yellow Dichromate TreatedBody - Low Carbon Steel Zinc Plated, Yellow Dichromate Treated

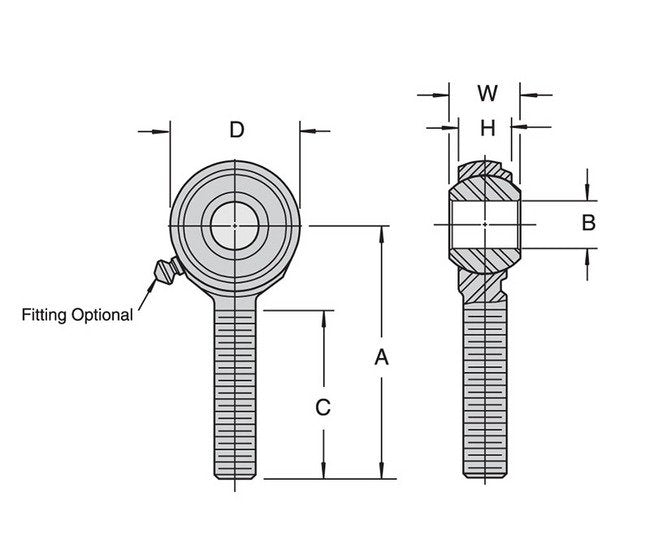

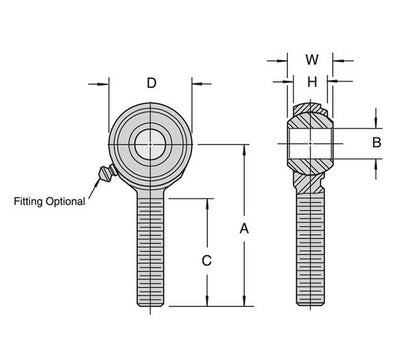

Specifications Ball Bore B 00020 00000
0.3125 "
Specifications Ball Diameter Ref
0.625 "
Specifications Ball Width W 0005
0.437 "
Specifications Centerline Length A 0015
1.875 "
Specifications Head Diameter D 0015
0.875 "
Specifications Housing Width H Ref
0.344 "
Specifications Note
For standard lubrication fitting, add "Z" to suffix. Example: EM10ZZerks not available on 3/8" or 10 mm and smaller rod ends.This series is also available in a studded configuration. Specify by adding "S" to suffix. Example: EM10S
Specifications Temperature Range
-65 to 250 ºF | -54 to 121 ºC
Specifications Thread Length C 0060
1.250 "
Specifications Thread Size Unf 2a
5/16-24 "
Specifications Type
Male
Specifications Ultimate Radial Static Load Capacity
3430 lb
Specifications Weight
0.073 lb
Studded Dimensions L Ref
0.531 "
Studded Dimensions Min Thread Length S
0.594 "
Studded Dimensions P 0030
0.688 "
Studded Dimensions Rod End Bore Size
5/16 "
Studded Dimensions Thread Size N Unf 2a
5/16-24 "
CAGE
0T9L4
NAICS
332510
PSC
4030
