EM/EF Rod Ends LH

EM/EF Rod Ends LH

PUS-adc6ff

Versatile EM/EF Rod Ends LH for high-performance mechanical applications. Durable metal to metal design, wide temperature range, customizable assemblies, SAE J1120 compliant.

$24.99
$24.99
Sale

Initiate Order

EM/EF Rod Ends LH

EM/EF Rod Ends LH

$24.99

Quantity: 1

Claim Your Seller Account

EM/EF Rod Ends LH

EM/EF Rod Ends LH

$24.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The EM/EF Rod Ends LH are versatile components designed for numerous mechanical applications in industries such as construction, lawn and garden, and transportation. Featuring a durable 2-piece metal to metal design with low carbon steel and zinc plating, these rod ends offer exceptional axial load capacity and strength, making them ideal for motion transfer devices requiring high performance. With a temperature range of -65 ºF to 250 ºF, they provide reliable operation in various environmental conditions. Additionally, custom assemblies can be tailored to specific requirements, ensuring precise compatibility with diverse equipment. Compliant with SAE spec J1120, these rod ends guarantee quality and reliability in every application.

Product Specifications

Applications 0
Numerous mechanical motion transfer devices/applications, including:Construction equipmentLawn and gardenTruck/bus
Features 0
2-piece metal to metal design offers our most economical optionSuited for higher axial load where side loading strength is criticalCan be used in a wide range of temperatures: -65 ºF - 250 ºF(-54 ºC - 121 ºC)Offered in studded and right or left-handed versionsCustom assemblies can be built to your specificationsMeets SAE spec J1120
Material 0
Ball - Low Carbon Steel, Case Hardened Zinc Plated, Yellow Dichromate TreatedBody - Low Carbon Steel Zinc Plated, Yellow Dichromate Treated

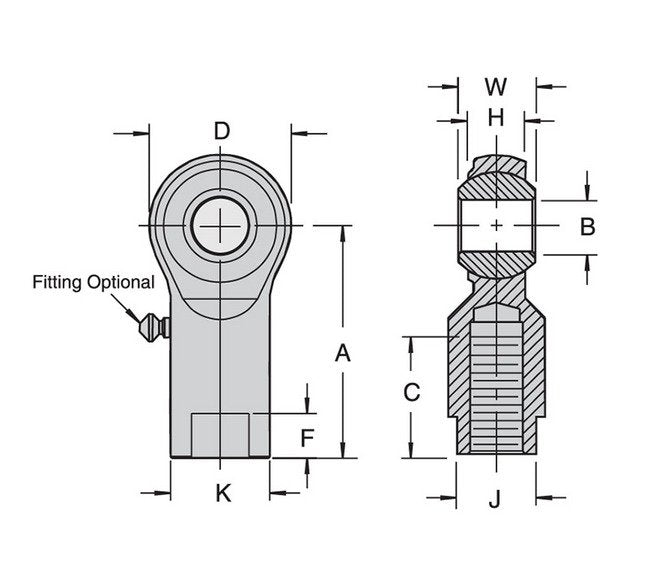

Specifications Ball Bore B 00020 00000
0.3750 "
Specifications Ball Diameter Ref
0.687 "
Specifications Ball Width W 0005
0.500 "
Specifications Centerline Length A 0015
1.625 "
Specifications Head Diameter D 0015
1.000 "
Specifications Housing Width H Ref
0.406 "
Specifications Note
For standard lubrication fitting, add "Z" to suffix. Example: EM10ZZerks not available on 3/8" or 10 mm and smaller rod ends.This series is also available in a studded configuration. Specify by adding "S" to suffix. Example: EM10S
Specifications Shank Diameter K 0015
0.687 "
Specifications Temperature Range
-65 to 250 ºF | -54 to 121 ºC
Specifications Thread Length C 0060
0.812 "
Specifications Thread Size Unf 2b
3/8-24 "
Specifications Type
Female
Specifications Ultimate Radial Static Load Capacity
5520 lb
Specifications Weight
0.152 lb
Specifications Wrench Flat Length F 0030
0.312 "
Specifications Wrench Flat Width J 0015
0.562 "
Studded Dimensions L Ref
0.625 "
Studded Dimensions Min Thread Length S
0.781 "
Studded Dimensions P 0030
0.875 "
Studded Dimensions Rod End Bore Size
3/8 "
Studded Dimensions Thread Size N Unf 2a
3/8-24 "
CAGE
0T9L4
NAICS
332510
PSC
4030
