EM/EF Rod Ends LH

EM/EF Rod Ends LH

PUS-33af24

Durable EM/EF Rod Ends LH for high axial load apps, temp range -65 °F to 250 °F. Customizable & SAE J1120 compliant.

$29.99
$29.99
Sale

Initiate Order

EM/EF Rod Ends LH

EM/EF Rod Ends LH

$29.99

Quantity: 1

Claim Your Seller Account

EM/EF Rod Ends LH

EM/EF Rod Ends LH

$29.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

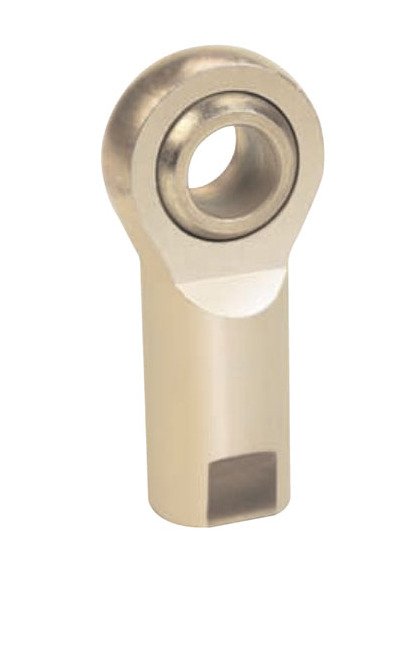

The EM/EF Rod Ends LH are expertly crafted with a 2-piece metal to metal design, ideal for applications requiring higher axial loads and critical side loading strength. Engineered to operate in temperatures ranging from -65 °F to 250 °F (-54 °C to 121 °C), these rod ends offer durability and versatility. Designed for various mechanical motion transfer devices in construction equipment, lawn and garden, and truck/bus industries, these rod ends can be customized to meet specific requirements. Compliant with SAE spec J1120, these rod ends are cost-effective and reliable for a wide range of institutional applications.

Product Specifications

Applications 0
Numerous mechanical motion transfer devices/applications, including:Construction equipmentLawn and gardenTruck/bus
Features 0
2-piece metal to metal design offers our most economical optionSuited for higher axial load where side loading strength is criticalCan be used in a wide range of temperatures: -65 ºF - 250 ºF(-54 ºC - 121 ºC)Offered in studded and right or left-handed versionsCustom assemblies can be built to your specificationsMeets SAE spec J1120
Material 0
Ball - Low Carbon Steel, Case Hardened Zinc Plated, Yellow Dichromate TreatedBody - Low Carbon Steel Zinc Plated, Yellow Dichromate Treated

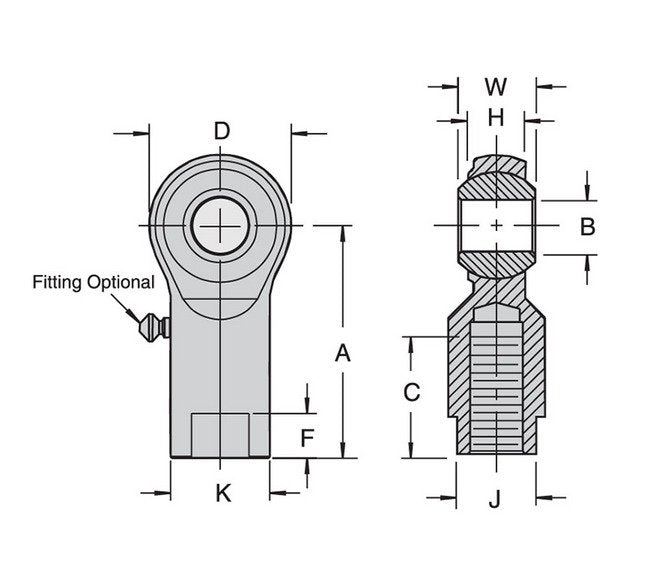

Specifications Ball Bore B 00020 00000
0.6250 "
Specifications Ball Diameter Ref
1.000 "
Specifications Ball Width W 0005
0.750 "
Specifications Centerline Length A 0015
2.500 "
Specifications Head Diameter D 0015
1.500 "
Specifications Housing Width H Ref
0.562 "
Specifications Note
For standard lubrication fitting, add "Z" to suffix. Example: EM10ZZerks not available on 3/8" or 10 mm and smaller rod ends.This series is also available in a studded configuration. Specify by adding "S" to suffix. Example: EM10S
Specifications Shank Diameter K 0015
1.000 "
Specifications Temperature Range
-65 to 250 ºF | -54 to 121 ºC
Specifications Thread Length C 0060
1.406 "
Specifications Thread Size Unf 2b
5/8-18 "
Specifications Type
Female
Specifications Ultimate Radial Static Load Capacity
10300 lb
Specifications Weight
0.473 lb
Specifications Wrench Flat Length F 0030
0.500 "
Specifications Wrench Flat Width J 0015
0.875 "
Studded Dimensions L Ref
1.000 "
Studded Dimensions Min Thread Length S
1.000 "
Studded Dimensions P 0030
1.125 "
Studded Dimensions Rod End Bore Size
5/8 "
Studded Dimensions Thread Size N Unf 2a
5/8-18 "
CAGE
0T9L4
NAICS
332510
PSC
4030
