EM/EF Rod Ends - LH Push-Pull Controls

EM/EF Rod Ends - LH Push-Pull Controls

PUS-4e3037

Premium LH Rod Ends for high axial load applications with wide temp range. Customizable assemblies available. SAE J1120 compliant.

$24.99
$24.99
Sale

Initiate Order

EM/EF Rod Ends - LH Push-Pull Controls

EM/EF Rod Ends - LH Push-Pull Controls

$24.99

Quantity: 1

Claim Your Seller Account

EM/EF Rod Ends - LH Push-Pull Controls

EM/EF Rod Ends - LH Push-Pull Controls

$24.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

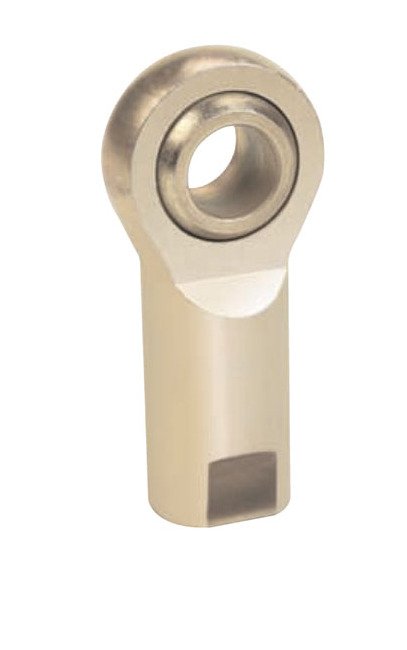

The LH EM/EF Rod Ends are precision-engineered for superior performance in various mechanical motion transfer applications, including construction equipment and lawn and garden machinery. Featuring a 2-piece metal to metal design, these rod ends offer exceptional strength and durability, making them ideal for high axial load situations where side loading strength is crucial. With a wide operating temperature range of -65 ºF to 250 ºF (-54 ºC to 121 ºC), they are versatile and reliable in diverse environments. Custom assemblies are available to meet specific requirements, and they comply with SAE spec J1120 for quality assurance.

Product Specifications

Applications 0
Numerous mechanical motion transfer devices/applications, including:Construction equipmentLawn and gardenTruck/bus
Features 0
2-piece metal to metal design offers our most economical optionSuited for higher axial load where side loading strength is criticalCan be used in a wide range of temperatures: -65 ºF - 250 ºF(-54 ºC - 121 ºC)Offered in studded and right or left-handed versionsCustom assemblies can be built to your specificationsMeets SAE spec J1120
Material 0
Ball - Low Carbon Steel, Case Hardened Zinc Plated, Yellow Dichromate TreatedBody - Low Carbon Steel Zinc Plated, Yellow Dichromate Treated

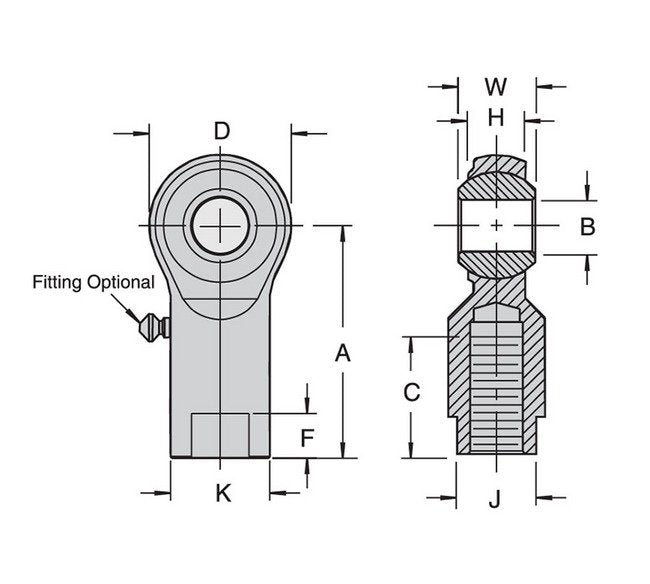

Specifications Ball Bore B 00020 00000
0.3125 "
Specifications Ball Diameter Ref
0.500 "
Specifications Ball Width W 0005
0.437 "
Specifications Centerline Length A 0015
1.375 "
Specifications Head Diameter D 0015
0.875 "
Specifications Housing Width H Ref
0.344 "
Specifications Note
For standard lubrication fitting, add "Z" to suffix. Example: EM10ZZerks not available on 3/8" or 10 mm and smaller rod ends.This series is also available in a studded configuration. Specify by adding "S" to suffix. Example: EM10S
Specifications Shank Diameter K 0015
0.500 "
Specifications Temperature Range
-65 to 250 ºF | -54 to 121 ºC
Specifications Thread Length C 0060
0.687 "
Specifications Thread Size Unf 2b
5/16-24 "
Specifications Type
Female
Specifications Ultimate Radial Static Load Capacity
4680 lb
Specifications Weight
0.081 lb
Specifications Wrench Flat Length F 0030
0.281 "
Specifications Wrench Flat Width J 0015
0.437 "
Studded Dimensions L Ref
0.531 "
Studded Dimensions Min Thread Length S
0.594 "
Studded Dimensions P 0030
0.688 "
Studded Dimensions Rod End Bore Size
5/16 "
Studded Dimensions Thread Size N Unf 2a
5/16-24 "
