EM/EF Rod Ends - LH Series

EM/EF Rod Ends - LH Series

PUS-bbcec9

EM/EF LH Series Rod Ends: Reliable, durable, and versatile for diverse applications. Meets SAE spec J1120.

$44.99
$44.99
Sale

Initiate Order

EM/EF Rod Ends - LH Series

EM/EF Rod Ends - LH Series

$44.99

Quantity: 1

Claim Your Seller Account

EM/EF Rod Ends - LH Series

EM/EF Rod Ends - LH Series

$44.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

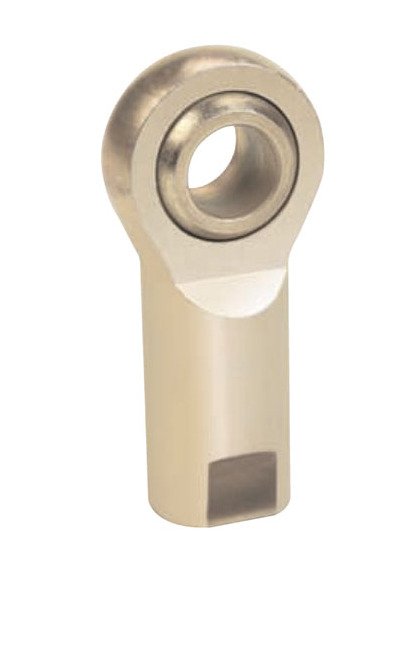

The EM/EF LH Series Rod Ends are engineered for superior performance in mechanical motion transfer devices. These 2-piece metal to metal rod ends boast exceptional strength, ideal for applications requiring high axial loads and strong side loading capacity. With a wide temperature tolerance from -65 ºF to 250 ºF (-54 ºC to 121 ºC), these rod ends ensure reliability in various operating conditions. Customizable assemblies are available to tailor to specific requirements, meeting SAE spec J1120 for quality assurance.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Applications 0
Numerous mechanical motion transfer devices/applications, including:Construction equipmentLawn and gardenTruck/bus
Features 0
2-piece metal to metal design offers our most economical optionSuited for higher axial load where side loading strength is criticalCan be used in a wide range of temperatures: -65 ºF - 250 ºF(-54 ºC - 121 ºC)Offered in studded and right or left-handed versionsCustom assemblies can be built to your specificationsMeets SAE spec J1120
Material 0
Ball - Low Carbon Steel, Case Hardened Zinc Plated, Yellow Dichromate TreatedBody - Low Carbon Steel Zinc Plated, Yellow Dichromate Treated

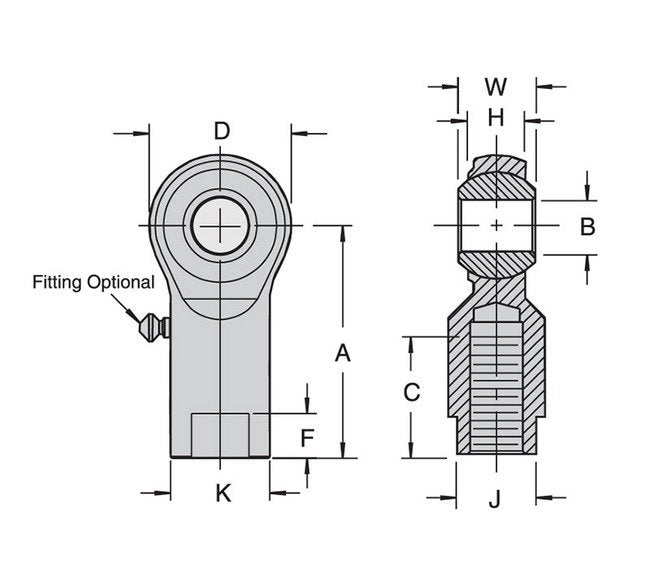

Specifications Ball Bore B 00020 00000
0.5000 "
Specifications Ball Diameter Ref
0.875 "
Specifications Ball Width W 0005
0.625 "
Specifications Centerline Length A 0015
2.125 "
Specifications Head Diameter D 0015
1.312 "
Specifications Housing Width H Ref
0.500 "
Specifications Note
For standard lubrication fitting, add "Z" to suffix. Example: EM10ZZerks not available on 3/8" or 10 mm and smaller rod ends.This series is also available in a studded configuration. Specify by adding "S" to suffix. Example: EM10S
Specifications Shank Diameter K 0015
0.875 "
Specifications Temperature Range
-65 to 250 ºF | -54 to 121 ºC
Specifications Thread Length C 0060
1.187 "
Specifications Thread Size Unf 2b
1/2-20 "
Specifications Type
Female
Specifications Ultimate Radial Static Load Capacity
9460 lb
Specifications Weight
0.324 lb
Specifications Wrench Flat Length F 0030
0.375 "
Specifications Wrench Flat Width J 0015
0.750 "
Studded Dimensions L Ref
0.875 "
Studded Dimensions Min Thread Length S
1.000 "
Studded Dimensions P 0030
1.125 "
Studded Dimensions Rod End Bore Size
1/2 "
Studded Dimensions Thread Size N Unf 2a
1/2-20 "
