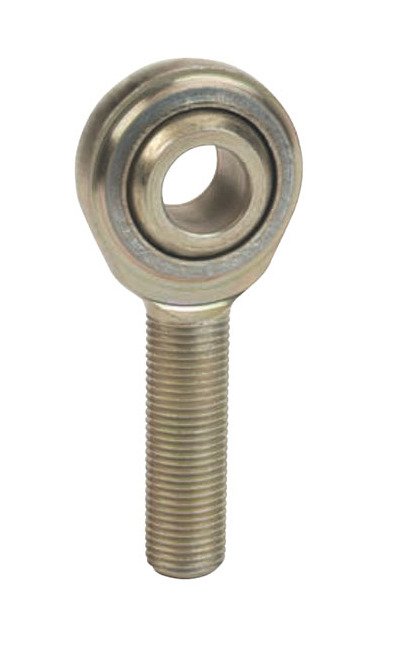

EM/EF Rod Ends - Male, Metal to Metal, 2-Piece Design

Name: EM/EF Rod Ends - Male, Metal to Metal, 2-Piece Design
Brand: Lexco Cable Manufacturing
SKU: PUS-bd4d4f
Price: 29.99 USD
Availability: OutOfStock

SKU:PUS-bd4d4f

High-quality EM/EF Rod Ends for versatile mechanical applications, economical metal to metal design, customizable to your needs.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The EM/EF Rod Ends are versatile components designed for various mechanical applications in industries such as construction, lawn and garden, and automotive. Featuring a 2-piece metal to metal design, these rod ends offer economical yet robust performance, ideal for applications requiring high axial loads with critical side loading strength. With a temperature range of -65 Ã‚ÂºF to 250 Ã‚ÂºF (-54 Ã‚ÂºC to 121 Ã‚ÂºC), they can function effectively in diverse environments. Additionally, these rod ends can be customized to meet specific requirements, adhering to SAE spec J1120.

Product Specifications

Applications 0

Numerous mechanical motion transfer devices/applications, including:Construction equipmentLawn and gardenTruck/bus

Features 0

2-piece metal to metal design offers our most economical optionSuited for higher axial load where side loading strength is criticalCan be used in a wide range of temperatures: -65 ÂºF - 250 ÂºF(-54 ÂºC - 121 ÂºC)Offered in studded and right or left-handed versionsCustom assemblies can be built to your specificationsMeets SAE spec J1120

Material 0

Ball - Low Carbon Steel, Case Hardened Zinc Plated, Yellow Dichromate TreatedBody - Low Carbon Steel Zinc Plated, Yellow Dichromate Treated

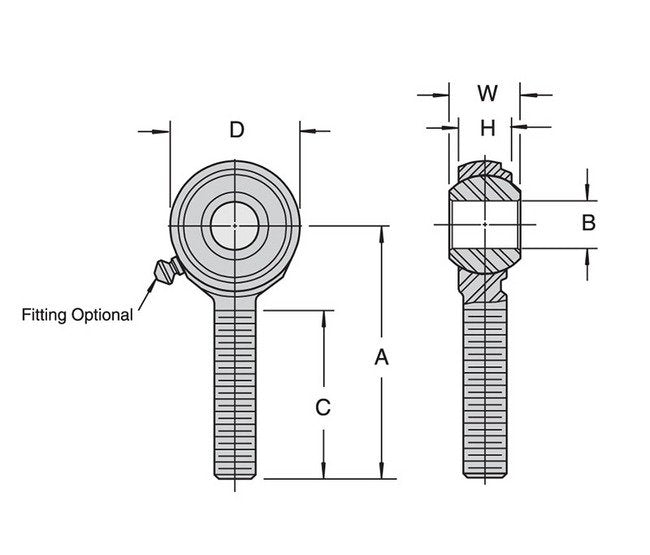

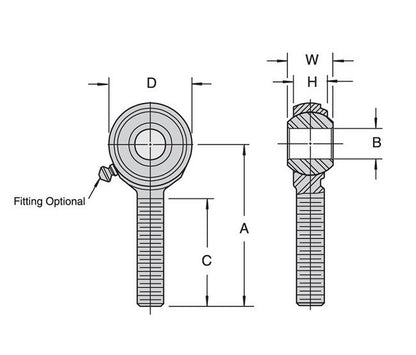

Specifications Ball Bore B 00020 00000

0.3125 "

Specifications Ball Diameter Ref

0.625 "

Specifications Ball Width W 0005

0.437 "

Specifications Centerline Length A 0015

1.875 "

Specifications Head Diameter D 0015

0.875 "

Specifications Housing Width H Ref

0.344 "

Specifications Note

For standard lubrication fitting, add "Z" to suffix. Example: EM10ZZerks not available on 3/8" or 10 mm and smaller rod ends.This series is also available in a studded configuration. Specify by adding "S" to suffix. Example: EM10S

Specifications Temperature Range

-65 to 250 ÂºF | -54 to 121 ÂºC

Specifications Thread Length C 0060

1.250 "

Specifications Thread Size Unf 2a

5/16-24 "

Specifications Type

Male

Specifications Ultimate Radial Static Load Capacity

3430 lb

Specifications Weight

0.073 lb

Studded Dimensions L Ref

0.531 "

Studded Dimensions Min Thread Length S

0.594 "

Studded Dimensions P 0030

0.688 "

Studded Dimensions Rod End Bore Size

5/16 "

Studded Dimensions Thread Size N Unf 2a

5/16-24 "

CAGE

0T9L4

NAICS

332510

PSC

4030
