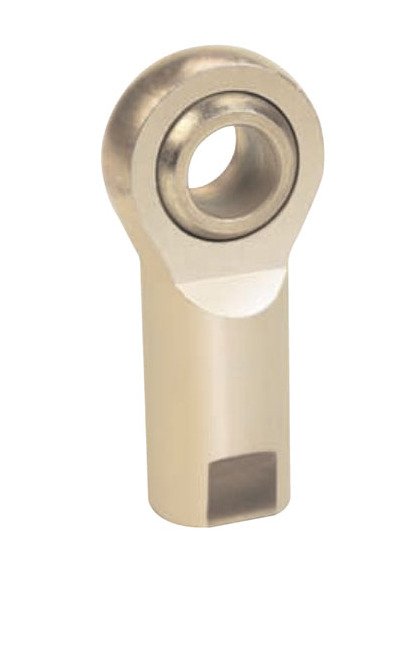

EM/EF Rod Ends - Metal to Metal 2-Piece RH Series

Name: EM/EF Rod Ends - Metal to Metal 2-Piece RH Series
Brand: Lexco Cable Manufacturing
SKU: PUS-548d9e
Price: 29.99 USD
Availability: OutOfStock

SKU:PUS-548d9e

Trust our EM/EF Rod Ends - RH Series for durable and versatile motion transfer in various applications.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The EM/EF Rod Ends in the RH Series are designed for versatile mechanical motion transfer in applications like construction equipment, lawn and garden machinery, and trucks/buses. Made of low carbon steel with zinc plating and yellow dichromate treatment, these rod ends offer a reliable 2-piece metal to metal design, ideal for high axial loads and critical side loading strength requirements. With a temperature range from -65 Ã‚ÂºF to 250 Ã‚ÂºF, these rod ends provide durability and flexibility. Custom assemblies are available to meet your specific needs. Compliant with SAE spec J1120.

Product Specifications

Applications 0

Numerous mechanical motion transfer devices/applications, including:Construction equipmentLawn and gardenTruck/bus

Features 0

2-piece metal to metal design offers our most economical optionSuited for higher axial load where side loading strength is criticalCan be used in a wide range of temperatures: -65 ÂºF - 250 ÂºF(-54 ÂºC - 121 ÂºC)Offered in studded and right or left-handed versionsCustom assemblies can be built to your specificationsMeets SAE spec J1120

Material 0

Ball - Low Carbon Steel, Case Hardened Zinc Plated, Yellow Dichromate TreatedBody - Low Carbon Steel Zinc Plated, Yellow Dichromate Treated

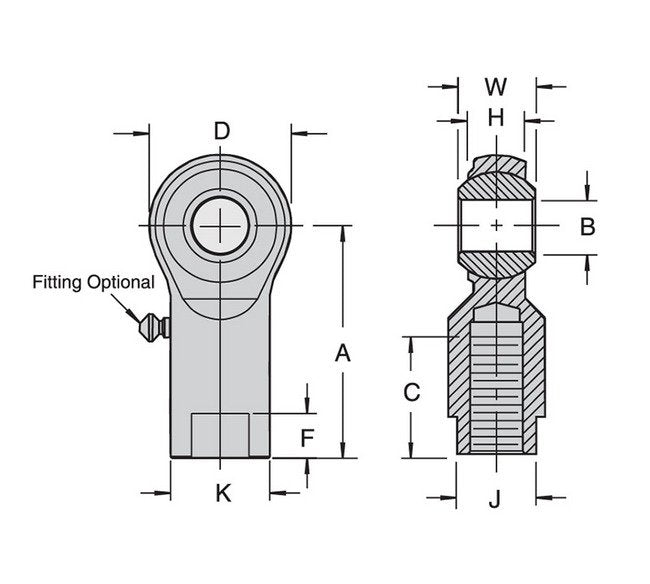

Specifications Ball Bore B 00020 00000

0.6250 "

Specifications Ball Diameter Ref

1.000 "

Specifications Ball Width W 0005

0.750 "

Specifications Centerline Length A 0015

2.500 "

Specifications Head Diameter D 0015

1.500 "

Specifications Housing Width H Ref

0.562 "

Specifications Note

For standard lubrication fitting, add "Z" to suffix. Example: EM10ZZerks not available on 3/8" or 10 mm and smaller rod ends.This series is also available in a studded configuration. Specify by adding "S" to suffix. Example: EM10S

Specifications Shank Diameter K 0015

1.000 "

Specifications Temperature Range

-65 to 250 ÂºF | -54 to 121 ÂºC

Specifications Thread Length C 0060

1.406 "

Specifications Thread Size Unf 2b

5/8-18 "

Specifications Type

Female

Specifications Ultimate Radial Static Load Capacity

10300 lb

Specifications Weight

0.473 lb

Specifications Wrench Flat Length F 0030

0.500 "

Specifications Wrench Flat Width J 0015

0.875 "

Studded Dimensions L Ref

1.000 "

Studded Dimensions Min Thread Length S

1.000 "

Studded Dimensions P 0030

1.125 "

Studded Dimensions Rod End Bore Size

5/8 "

Studded Dimensions Thread Size N Unf 2a

5/8-18 "

CAGE

0T9L4

NAICS

332510

PSC

4030
