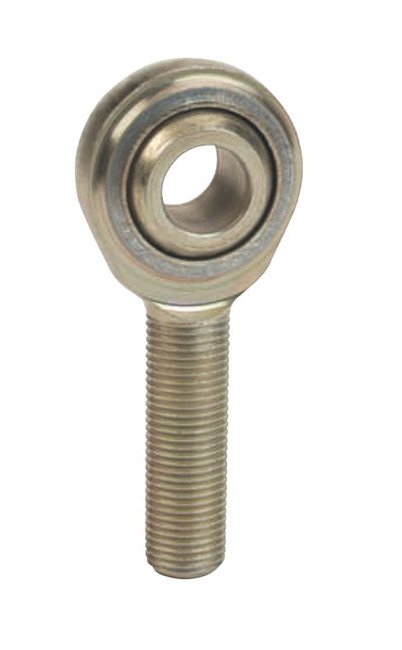

EM/EF Rod Ends - RH

EM/EF Rod Ends - RH

PUS-9ed148

Enhance mechanical motion transfer with EM/EF Rod Ends - RH featuring 2-piece metal to metal design for superior strength and reliability.

$24.99
$24.99
Sale

Initiate Order

EM/EF Rod Ends - RH

EM/EF Rod Ends - RH

$24.99

Quantity: 1

Claim Your Seller Account

EM/EF Rod Ends - RH

EM/EF Rod Ends - RH

$24.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The EM/EF Rod Ends - RH are meticulously designed with a 2-piece metal to metal construction, offering exceptional durability and reliability for various mechanical motion transfer applications. Ideal for construction equipment, lawn and garden machinery, and truck/bus applications, these rod ends excel in handling higher axial loads where side loading strength is crucial. With a temperature range of -65 ºF to 250 ºF (-54 ºC to 121 ºC), they ensure optimal performance in diverse environments. Customizable assemblies can be tailored to your specific requirements, meeting SAE spec J1120 standards with precision.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Applications 0
Numerous mechanical motion transfer devices/applications, including:Construction equipmentLawn and gardenTruck/bus
Features 0
2-piece metal to metal design offers our most economical optionSuited for higher axial load where side loading strength is criticalCan be used in a wide range of temperatures: -65 ºF - 250 ºF(-54 ºC - 121 ºC)Offered in studded and right or left-handed versionsCustom assemblies can be built to your specificationsMeets SAE spec J1120
Material 0
Ball - Low Carbon Steel, Case Hardened Zinc Plated, Yellow Dichromate TreatedBody - Low Carbon Steel Zinc Plated, Yellow Dichromate Treated

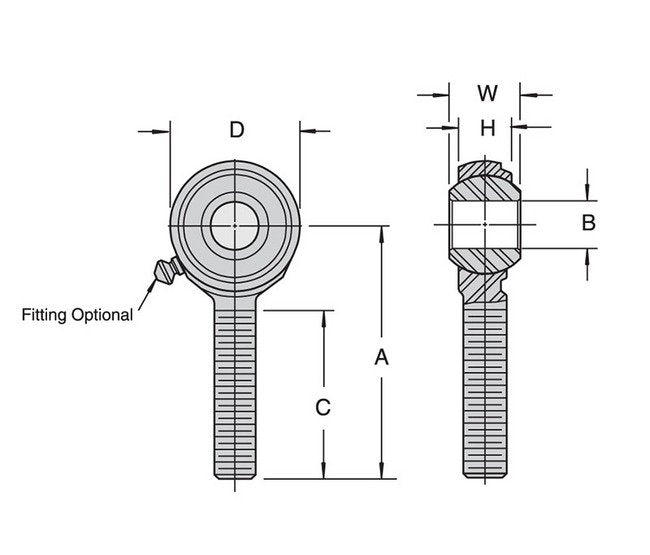

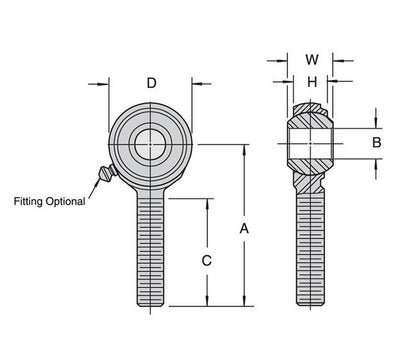

Specifications Ball Bore B 00020 00000
0.2500 "
Specifications Ball Diameter Ref
0.516 "
Specifications Ball Width W 0005
0.375 "
Specifications Centerline Length A 0015
1.562 "
Specifications Head Diameter D 0015
0.750 "
Specifications Housing Width H Ref
0.281 "
Specifications Note
For standard lubrication fitting, add "Z" to suffix. Example: EM10ZZerks not available on 3/8" or 10 mm and smaller rod ends.This series is also available in a studded configuration. Specify by adding "S" to suffix. Example: EM10S
Specifications Temperature Range
-65 to 250 ºF | -54 to 121 ºC
Specifications Thread Length C 0060
1.000 "
Specifications Thread Size Unf 2a
1/4-28 "
Specifications Type
Male
Specifications Ultimate Radial Static Load Capacity
2510 lb
Specifications Weight
0.043 lb
Studded Dimensions L Ref
0.469 "
Studded Dimensions Min Thread Length S
0.500 "
Studded Dimensions P 0030
0.563 "
Studded Dimensions Rod End Bore Size
1/4 "
Studded Dimensions Thread Size N Unf 2a
1/4-28 "
CAGE
0T9L4
NAICS
332510
PSC
4030
