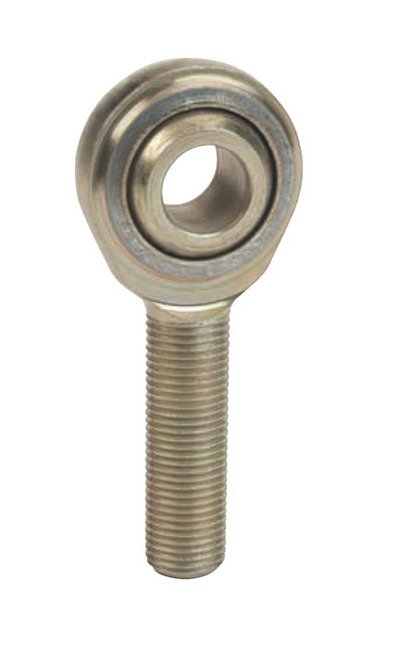

EM/EF Rod Ends - RH 2-Piece Metal to Metal

Name: EM/EF Rod Ends - RH 2-Piece Metal to Metal
Brand: Lexco Cable Manufacturing
SKU: PUS-b95e62
Price: 29.99 USD
Availability: OutOfStock

SKU:PUS-b95e62

Commercial 2-Piece Metal to Metal Rod Ends, durable design, ideal for various mechanical motion transfer applications.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The EM/EF Rod Ends in the RH product line are designed for commercial applications, offering a 2-piece metal to metal construction that ensures durability and reliability. With specifications meeting institutional procurement standards, including a Ball Bore of 0.6250", Ball Width of 0.750", and a robust Ultimate Radial Static Load Capacity of 10300 lb, these rod ends are suitable for various mechanical motion transfer devices in sectors such as construction equipment, lawn and garden, and truck/bus industries. The robust design can withstand higher axial loads and wide temperature ranges from -65 Ã‚ÂºF to 250 Ã‚ÂºF (-54 Ã‚ÂºC to 121 Ã‚ÂºC), making them versatile and dependable for a range of applications. Custom assembly options available to meet specific requirements.

Product Specifications

Applications 0

Numerous mechanical motion transfer devices/applications, including:Construction equipmentLawn and gardenTruck/bus

Features 0

2-piece metal to metal design offers our most economical optionSuited for higher axial load where side loading strength is criticalCan be used in a wide range of temperatures: -65 ÂºF - 250 ÂºF(-54 ÂºC - 121 ÂºC)Offered in studded and right or left-handed versionsCustom assemblies can be built to your specificationsMeets SAE spec J1120

Material 0

Ball - Low Carbon Steel, Case Hardened Zinc Plated, Yellow Dichromate TreatedBody - Low Carbon Steel Zinc Plated, Yellow Dichromate Treated

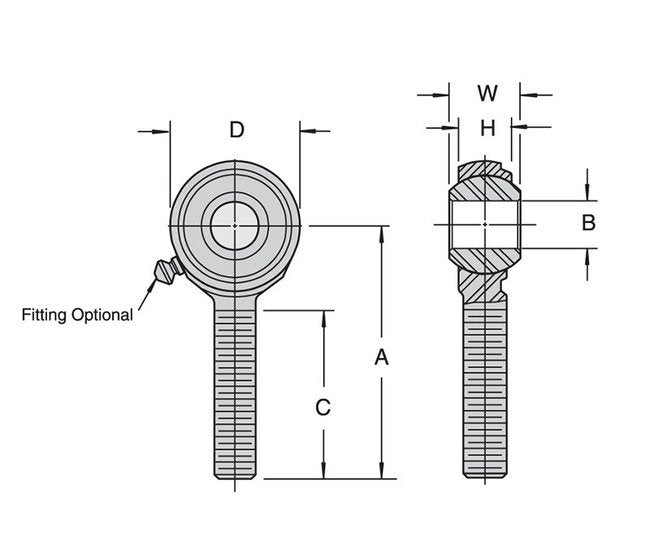

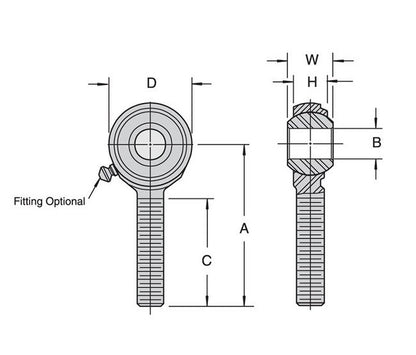

Specifications Ball Bore B 00020 00000

0.6250 "

Specifications Ball Diameter Ref

1.125 "

Specifications Ball Width W 0005

0.750 "

Specifications Centerline Length A 0015

2.625 "

Specifications Head Diameter D 0015

1.500 "

Specifications Housing Width H Ref

0.562 "

Specifications Note

For standard lubrication fitting, add "Z" to suffix. Example: EM10ZZerks not available on 3/8" or 10 mm and smaller rod ends.This series is also available in a studded configuration. Specify by adding "S" to suffix. Example: EM10S

Specifications Temperature Range

-65 to 250 ÂºF | -54 to 121 ÂºC

Specifications Thread Length C 0060

1.625 "

Specifications Thread Size Unf 2a

5/8-18 "

Specifications Type

Male

Specifications Ultimate Radial Static Load Capacity

10300 lb

Specifications Weight

0.368 lb

Studded Dimensions L Ref

1.000 "

Studded Dimensions Min Thread Length S

1.000 "

Studded Dimensions P 0030

1.125 "

Studded Dimensions Rod End Bore Size

5/8 "

Studded Dimensions Thread Size N Unf 2a

5/8-18 "

CAGE

0T9L4

NAICS

332510

PSC

4030
