Triad Magnetics →

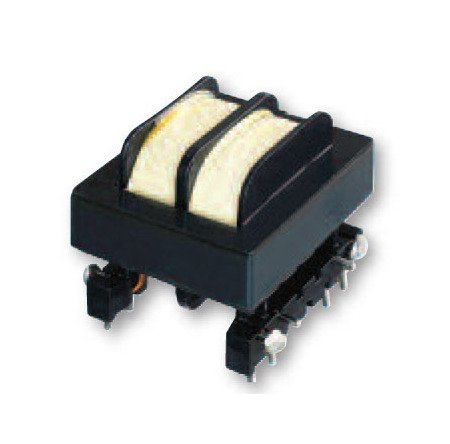

EMC-Approved Common Mode Choke Inductor

EMC-Approved Common Mode Choke Inductor

SKU:IND-1c44ab

Depend on our CME Series Inductors for noise elimination in power supplies. UL-rated materials for optimal performance.

Regular price $25.99
Regular price Sale price $25.99
Sale

Initiate Order

EMC-Approved Common Mode Choke Inductor

EMC-Approved Common Mode Choke Inductor

$25.99

Quantity: 1

Claim Your Seller Account

EMC-Approved Common Mode Choke Inductor

EMC-Approved Common Mode Choke Inductor

$25.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
Ideal for noise suppression in power supplies, the CME Series Common Mode Inductors effectively filter common and differential mode noise. Designed to meet stringent regulatory standards, these UL-rated inductors reduce AC line interference from high-frequency systems, ensuring reliable and compliant performance.

Product Specifications

Note 0
A CME2425-KIT is available which includes each one of the components in section B.

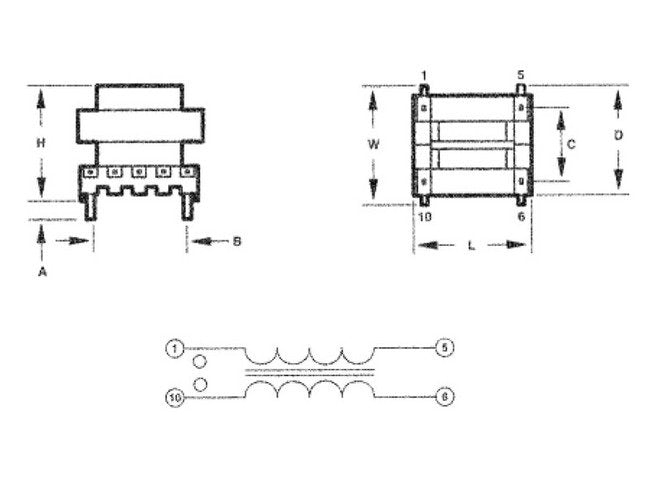

Specifications Dimension A
0.125 in
Specifications Dimension B
0.800 in
Specifications Dimension C
0.610 in
Specifications Dimension D
0.029 in²
Specifications Dimension H
1.075 in
Specifications Dimension L
1.050 in
Specifications Dimension W
1.050 in
Specifications Industry Standards
CSA | IEC | UL | VDE
Specifications Max Dc Resistance
2.020 Ohm
Specifications Min Inductance
67.5 mH
Specifications Min Leakage
360.0 µH
Specifications Rms Current
0.40 A
Specifications Weight
0.154 lb
Technical Notes 0
Hi-pot tested at 2500 VRMS.DC resistance at 20 ºC ±10%.Inductances are minimum measured at 10 Gauss. Current rating for approximately 40 ºC temperature rise.
