Emerson Aventics CD07 4-Way/2-Position Air Valve Operators

Name: Emerson Aventics CD07 4-Way/2-Position Air Valve Operators
Brand: Distributor To Industry, Inc.
SKU: DRI-8b6ee1
Price: 44.99 USD
Availability: OutOfStock

SKU:DRI-8b6ee1

Enhance your drilling rig with reliable Emerson Aventics CD07 Air Valve Operators for optimal performance.

$44.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

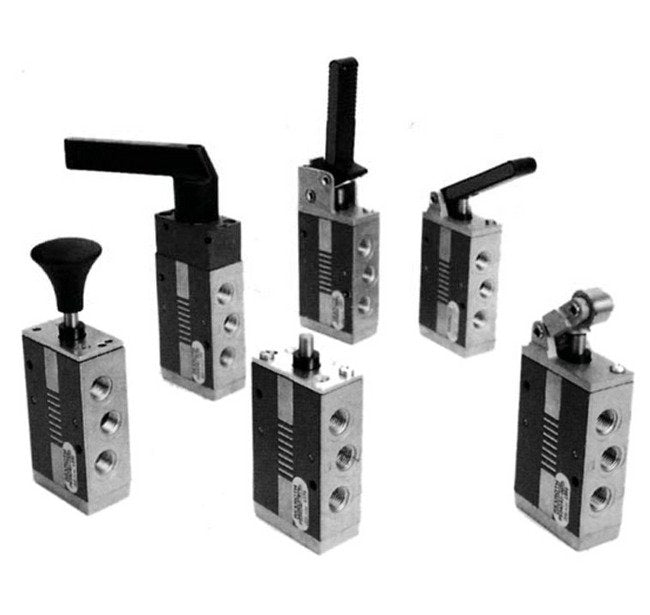

Upgrade your drilling rig equipment with the Emerson Aventics CD07 4-Way/2-Position Air Valve Operators. These manual and mechanical operators feature a 1/4" NPT port size, capable of handling vacuum service up to 150 psi. Built with a zinc die-cast body and stainless steel spools, these operators are designed for reliability and ease of operation. The compact and versatile design not only enhances equipment appearance but also saves valuable engineering space. Ideal for Marine, Mobile, and Oil Field applications, this valve ensures consistent performance even in dual pressure environments.

Product Specifications

Specifications Body Material

Zinc Die Casting

Specifications Design

Air Pilot Return

Specifications Flow

Cv = 1.1

Specifications Media

Air (Lubricated or non-lubricated)

Specifications Old Part

P 029992 | P -029992-00000 | P 29992 | P029992 | P29992

Specifications Port Size

1/4" NPT

Specifications Spools Material

Stainless Steel

Specifications Temperature Range

-20 to +175 ÂºF

Specifications Type

Knob

Specifications Working Pressure

150 psi

Emerson Aventics CD07 4-Way/2-Position Air Valve Operators
