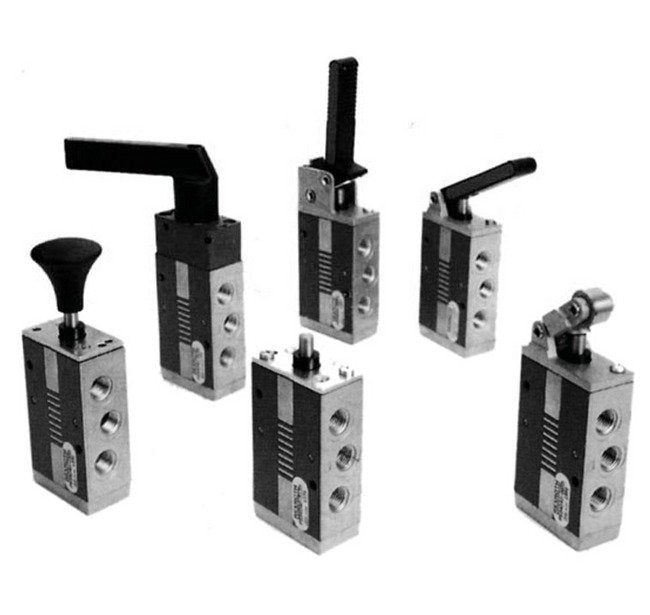

Emerson Aventics CD07 4-Way Manual Operators

Name: Emerson Aventics CD07 4-Way Manual Operators
Brand: Distributor To Industry, Inc.
SKU: DRI-3a01cc
Price: 49.99 USD
Availability: OutOfStock

SKU:DRI-3a01cc

Reliable Emerson Aventics CD07 4-Way Manual Operators for drilling rig air valves in Marine, Mobile & Oil Field. Compact, durable, and high-performing.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Emerson Aventics CD07 4-Way Manual Operators are expertly designed for drilling rig air valve applications in Marine, Mobile & Oil Field environments. With a 1/4" NPT port size, these operators offer reliable performance under working pressures up to 150 psi, suitable for vacuum service and dual pressure setups. Crafted from high-quality zinc die casting and stainless steel spools, these operators ensure durability and optimal functionality in temperature ranges from -20º to +175ºF. The compact and sleek design of the CD07 valves saves valuable engineering space while delivering consistent and efficient operation, making them a top choice for industrial applications.

Product Specifications

Specifications Body Material

Zinc Die Casting

Specifications Design

Spring Return

Specifications Flow

Cv = 1.1

Specifications Media

Air (Lubricated or non-lubricated)

Specifications Port Size

1/4" NPT

Specifications Spools Material

Stainless Steel

Specifications Temperature Range

-20 to +175 ÂºF

Specifications Type

Treadle

Specifications Working Pressure

150 psi

Emerson Aventics CD07 4-Way Manual Operators
