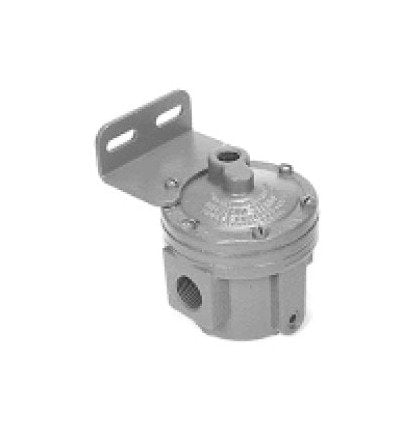

Emerson Aventics Rexroth Type 'S' Pilot-Operated Relay Valve
Emerson Aventics Rexroth Type 'S' Pilot-Operated Relay Valve
SKU:DRI-bc5d92
Reliable Emerson Aventics Rexroth Type 'S' Relay Valve for precise pressure control in industrial settings.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Emerson Aventics Rexroth Type 'S' Pilot-Operated Relay Valve
$49.99
Quantity: 1
Claim Your Seller Account
Emerson Aventics Rexroth Type 'S' Pilot-Operated Relay Valve
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

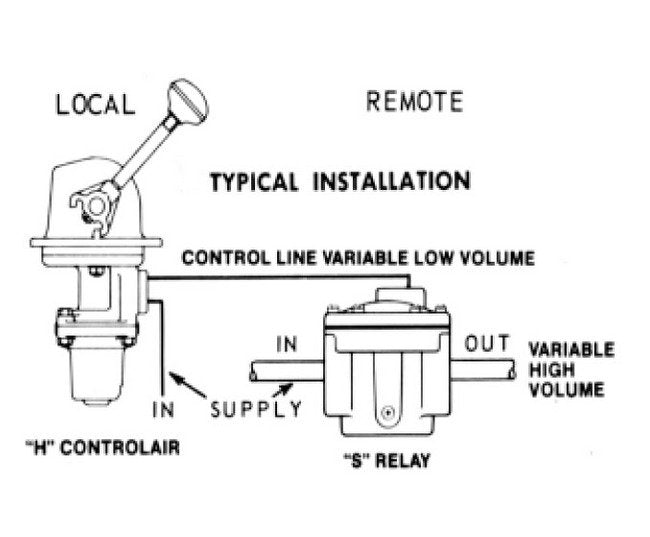

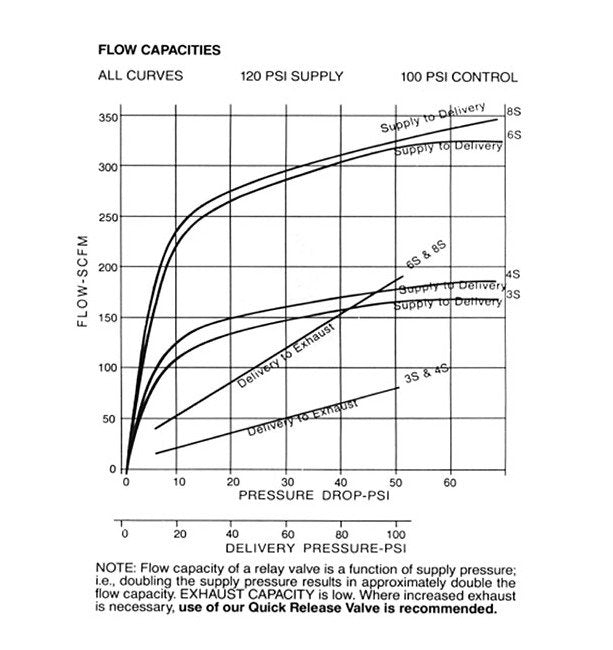

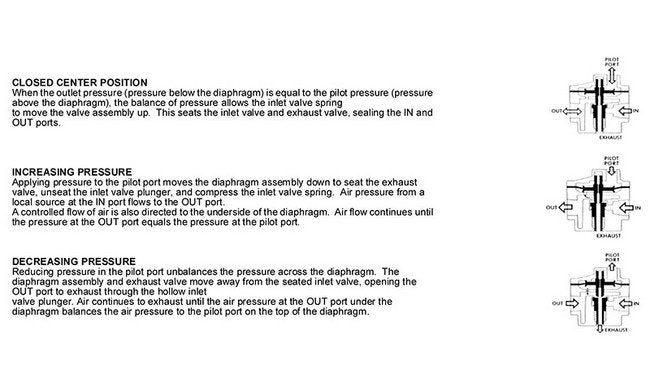

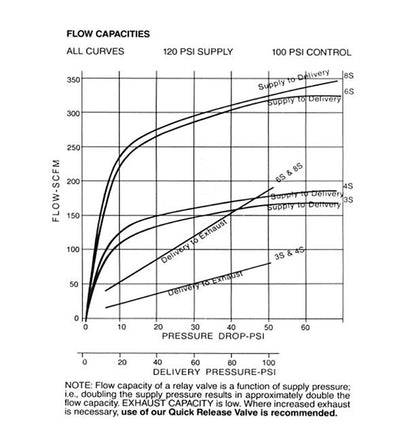

The Emerson Aventics Rexroth Type 'S' Relay Valve offers unparalleled reliability, with a 1 to 1 ratio pressure sustainment system and balanced internal valve for pressure regulation. Ideal for long piping runs, it features rubber seated valves for zero leakage, versatile installation options, and easy maintenance. With a large capacity and modern corrosion-resistant construction, this pneumatic control valve enhances response time and flow rates, making it a top choice for industrial applications.
Product Specifications

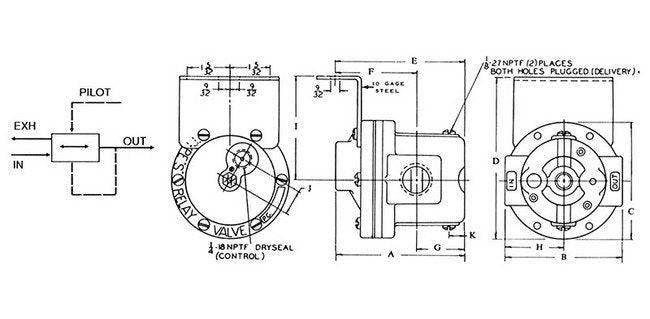

Dimensions A
3 9/16 in.
Dimensions B
3 1/4 in.
Dimensions C
3 1/4 in.
Dimensions D
4 1/2 in.
Dimensions E
4 1/16 in.
Dimensions F
2 1/4 in.
Dimensions G
1 11/32 in.
Dimensions H
1 5/8 in.
Dimensions I
2 7/8 in.
Dimensions J
11/16 in.
Dimensions K
15/32 in.
Materials Body Material
3/4" and 1" die cast aluminum | 3/8" & 1/2" die cast zinc
Materials Diaphragm Material
Nylon reinforced HYCAR
Materials Other Material
Anodized aluminum or plated
Specifications Body Port Size
1/4" and 1" as noted below
Specifications Hysteresis
Less than 5 psi.
Specifications Maximum Pilot Pressure
250 psi
Specifications Maximum Supply Pressure
250 psi
Specifications Media
Air or inert gas
Specifications Model Designation
3-S
Specifications Old Part
P 055160 | P -055160-00000 | P 55160 | P055160 | P55160
Specifications Pilot Port Size
1/4" NPT
Specifications Pipe Size
3/8"-18
Specifications Ratio Pilot To Delivery
1:1 standard; others noted below.
Specifications Temperature Range
-20 to 160 ºF
Specifications Type
3 way pilot operated pressure control
Specifications Weight
2 lb | 6 oz
