EMI/RFI Common Mode Choke Inductors - UT/ET Series
EMI/RFI Common Mode Choke Inductors - UT/ET Series
SKU:IND-8c38a9
Protect electronics from EMI/RFI with UT/ET Series Chokes - Low flux leakage, high impedance, and CSA/IEC/UL compliant
Regular price
$25.99
Regular price
Sale price
$25.99
Unit price
per
Initiate Order
EMI/RFI Common Mode Choke Inductors - UT/ET Series
$25.99
Quantity: 1
Claim Your Seller Account
EMI/RFI Common Mode Choke Inductors - UT/ET Series
$25.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The UT/ET Series Common Mode Choke Inductors are essential components for mitigating electromagnetic interference (EMI) and radio frequency interference (RFI) across a wide range of applications. Featuring low leakage flux, high self-resonant frequency, and high impedance at applicable frequencies, these inductors effectively safeguard power supply lines and electronic equipment from malfunctions. With precision engineering offering a min. inductance of 36.00 mH, a low Max. DCR of 0.8 Ohm, and compliance with industry standards like CSA, IEC, and UL, these inductors ensure reliable performance and durability.
Product Specifications
Specifications Configuration Type
Vertical
Specifications Current Rating
0.9 A
Specifications Dielectric Withstanding Voltage Ac
2,000 V
Specifications Features
Low Leakage FluxHigh Self-Resonant FrequencyHigh Impedance at Applicable FrequencyLow Stray Capacitance in Section Winding

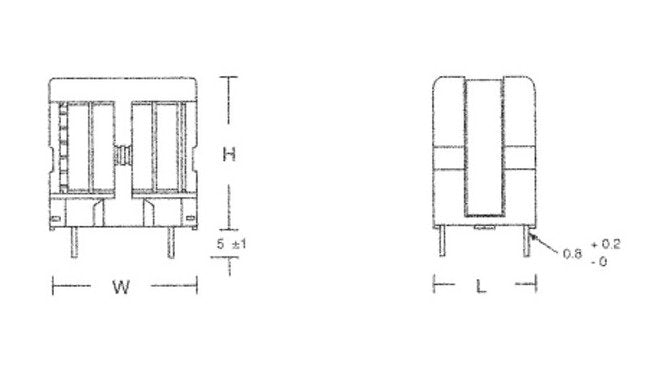

Specifications Height H
37 mm
Specifications Industry Standards
CSA | IEC | UL
Specifications Length L
23.5 mm
Specifications Max Dcr
0.8 Ohm
Specifications Max Inductance Difference
1,000 µH
Specifications Max Temperature Rise
45 ºC
Specifications Min Inductance
36.00 mH
Specifications Min Insulation Resistance
100 mOhm
Specifications Operating Temperature Range
-20 to 105 ºC
Specifications Pin Mounting A
13.0 mm
Specifications Pin Mounting B
10.0 mm
Specifications Rated Voltage Ac
250 V
Specifications Weight
1.40 oz
Specifications Width W
31.5 mm
Technical Notes 0
The inductance difference measures between the coil L1 and L2.
