The UT/ET Series Common Mode Inductors are indispensable for mitigating electromagnetic interference (EMI) and radio frequency interference (RFI) across diverse applications. Featuring low leakage flux, high self-resonant frequency, and significant impedance at the applicable frequency, these inductors ensure optimal performance and safeguard against malfunctions in electronic equipment. With high-quality construction and low stray capacitance in section winding, these inductors guarantee reliability and durability in demanding environments.
Product Specifications
Specifications Configuration Type
Vertical
Specifications Current Rating
0.7 A
Specifications Dielectric Withstanding Voltage Ac
2,000 V
Specifications Features
Low Leakage FluxHigh Self-Resonant FrequencyHigh Impedance at Applicable FrequencyLow Stray Capacitance in Section Winding

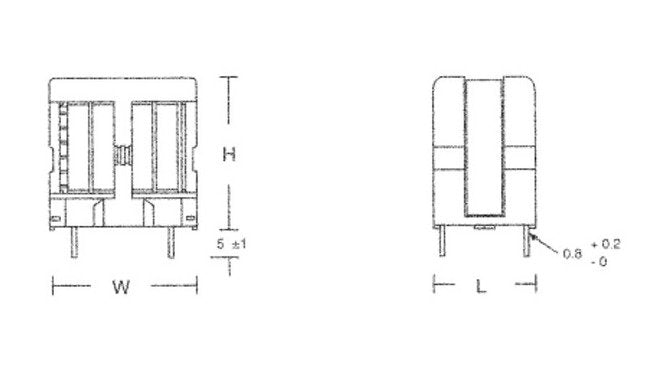

Specifications Height H
37 mm
Specifications Industry Standards
CSA | IEC | UL
Specifications Length L
23.5 mm
Specifications Max Dcr
1.5 Ohm
Specifications Max Inductance Difference
1,500 µH
Specifications Max Temperature Rise
45 ºC
Specifications Min Inductance
66.00 mH
Specifications Min Insulation Resistance
100 mOhm
Specifications Operating Temperature Range
-20 to 105 ºC
Specifications Pin Mounting A
13.0 mm
Specifications Pin Mounting B
10.0 mm
Specifications Rated Voltage Ac
250 V
Specifications Weight
1.40 oz
Specifications Width W
31.5 mm
Technical Notes 0
The inductance difference measures between the coil L1 and L2.
