EMI/RFI Common Mode Inductors - UT/ET Series
EMI/RFI Common Mode Inductors - UT/ET Series
SKU:IND-7ac2c8
Cutting-edge UT/ET Series inductors for superior EMI/RFI suppression in electronic applications.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
EMI/RFI Common Mode Inductors - UT/ET Series
$24.99
Quantity: 1
Claim Your Seller Account
EMI/RFI Common Mode Inductors - UT/ET Series
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The UT/ET Series Common Mode Inductors are indispensable components for mitigating electromagnetic and radio frequency interferences in power supply lines and electronic equipment. These vertical inductors feature low leakage flux, high self-resonant frequency, and high impedance, ensuring superior performance in noise suppression. With a robust construction and low stray capacitance, these inductors offer reliable EMI/RFI prevention and enhanced equipment functionality.
Product Specifications
Specifications Configuration Type
Vertical
Specifications Current Rating
0.9 A
Specifications Dielectric Withstanding Voltage Ac
2,000 V
Specifications Features
Low Leakage FluxHigh Self-Resonant FrequencyHigh Impedance at Applicable FrequencyLow Stray Capacitance in Section Winding

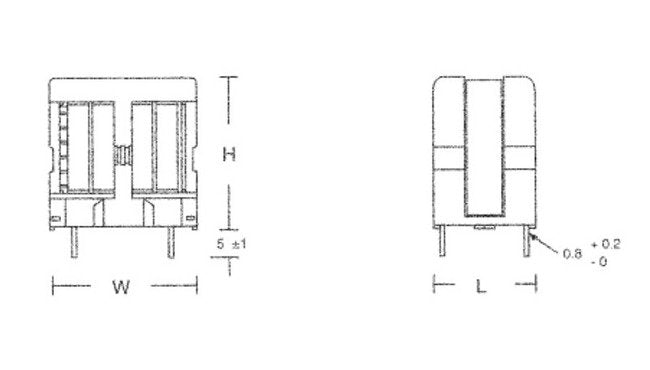

Specifications Height H
31 mm
Specifications Industry Standards
CSA | IEC | UL
Specifications Length L
19.5 mm
Specifications Max Dcr
0.5 Ohm
Specifications Max Inductance Difference
250 µH
Specifications Max Temperature Rise
45 ºC
Specifications Min Inductance
7.80 mH
Specifications Min Insulation Resistance
100 mOhm
Specifications Operating Temperature Range
-20 to 105 ºC
Specifications Pin Mounting A
13.0 mm
Specifications Pin Mounting B
10.0 mm
Specifications Rated Voltage Ac
250 V
Specifications Weight
0.88 oz
Specifications Width W
26.5 mm
Technical Notes 0
The inductance difference measures between the coil L1 and L2.
