EMI/RFI Common Mode Inductors - UT/ET Series
EMI/RFI Common Mode Inductors - UT/ET Series
SKU:IND-91be61
Reduce EMI/RFI with UT/ET Series Common Mode Inductors. Low flux leakage, high impedance, and reliable performance.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
EMI/RFI Common Mode Inductors - UT/ET Series
$12.99
Quantity: 1
Claim Your Seller Account
EMI/RFI Common Mode Inductors - UT/ET Series
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your electronics with our UT/ET Series Common Mode Inductors designed to effectively reduce electromagnetic interference and radio frequency interference. With features like low leakage flux, high impedance, and low stray capacitance, these vertical inductors ensure optimal performance and reliability in various applications. Meeting industry standards such as CSA, IEC, and UL, these inductors are ideal for power supply line protection and preventing electronic equipment malfunction.
Product Specifications
Specifications Configuration Type
Vertical
Specifications Current Rating
1.00 A
Specifications Dielectric Withstanding Voltage Ac
2,000 V
Specifications Features
Low Leakage FluxHigh Self-Resonant FrequencyHigh Impedance at Applicable FrequencyLow Stray Capacitance in Section Winding

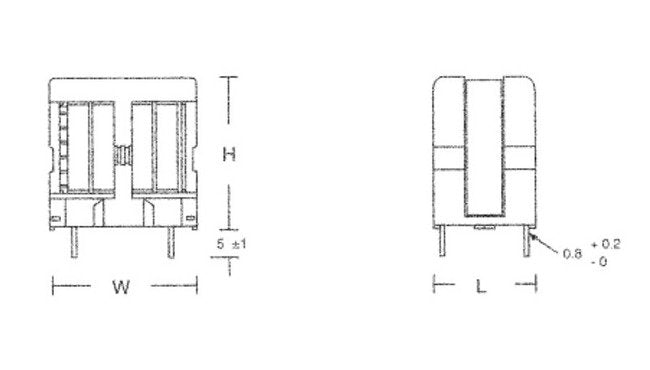

Specifications Height H
31 mm
Specifications Industry Standards
CSA | IEC | UL
Specifications Length L
19.5 mm
Specifications Max Dcr
0.340 Ohm
Specifications Max Inductance Difference
200 µH
Specifications Max Temperature Rise
45 ºC
Specifications Min Inductance
5.20 mH
Specifications Min Insulation Resistance
100 mOhm
Specifications Operating Temperature Range
-20 to 105 ºC
Specifications Pin Mounting A
13.0 mm
Specifications Pin Mounting B
10.0 mm
Specifications Rated Voltage Ac
250 V
Specifications Weight
0.88 oz
Specifications Width W
26.5 mm
Technical Notes 0
The inductance difference measures between the coil L1 and L2.
