UT/ET Series Common Mode Inductors with high EMI/RFI suppression capabilities. CSA, IEC, and UL compliant.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
EMI/RFI Common Mode Inductors - UT/ET Series
$29.99
Quantity: 1
Claim Your Seller Account
EMI/RFI Common Mode Inductors - UT/ET Series
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

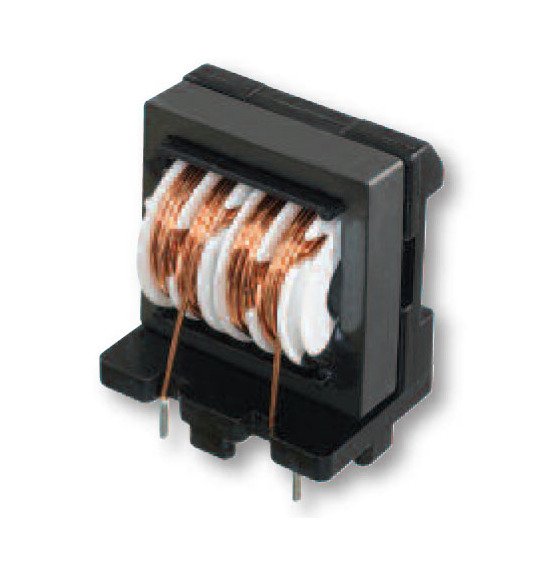

The UT/ET Series Common Mode Inductors are essential components designed to mitigate electromagnetic interference (EMI) and radio frequency interference (RFI) in power supply lines, ensuring optimal performance and preventing malfunctions in electronic equipment. These inductors feature low leakage flux, high self-resonant frequency, high impedance at applicable frequencies, and low stray capacitance in section winding, providing reliable EMI and RFI suppression. With a configuration type of Vertical and a nominal pin mounting, these inductors offer a Min. Inductance of 8.10 mH, Max. DCR of 0.12 Ohm, and a Current Rating of 3.00 A. Compliant with industry standards including CSA, IEC, and UL, the UT/ET Series Inductors are the ideal choice for applications requiring efficient EMI and RFI suppression.
Product Specifications
Specifications Configuration Type
Vertical
Specifications Current Rating
3.00 A
Specifications Dielectric Withstanding Voltage Ac
2,000 V
Specifications Features
Low Leakage FluxHigh Self-Resonant FrequencyHigh Impedance at Applicable FrequencyLow Stray Capacitance in Section Winding
Specifications Industry Standards
CSA | IEC | UL
Specifications Max Dcr
0.12 Ohm

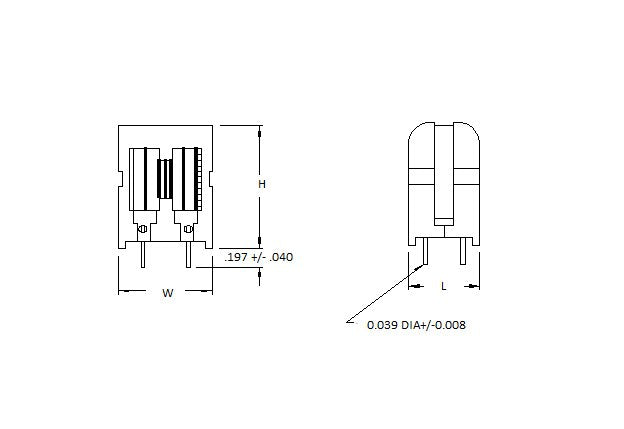

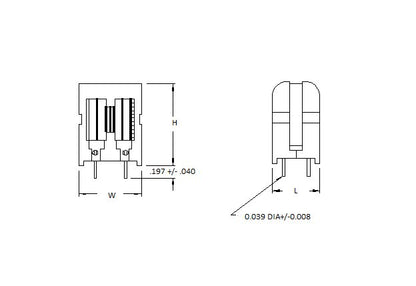

Specifications Max Height H
1.73 in | 43.94 mm
Specifications Max Inductance Difference
250 µH
Specifications Max Length L
1.06 in | 26.92 mm
Specifications Max Temperature Rise
45 ºC
Specifications Max Width W
1.46 in | 37.08 mm
Specifications Min Inductance
8.10 mH
Specifications Min Insulation Resistance
100 mOhm
Specifications Nominal Pin Mounting A
0.827 in | 21.00 mm
Specifications Nominal Pin Mounting B
0.591 in | 15.01 mm
Specifications Operating Temperature Range
-20 to 105 ºC
Specifications Rated Voltage Ac
250 V
Specifications Weight
2.60 oz
Technical Notes 0

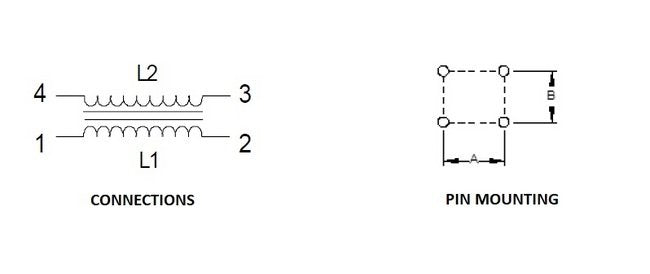

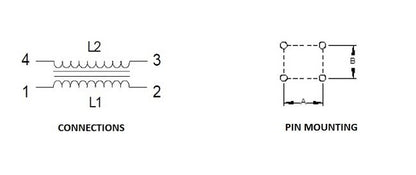

The inductance difference measures between the coil L1 and L2.
