EMI/RFI Filter Inductors
EMI/RFI Filter Inductors
SKU:IND-cee062
Prevent EMI/RFI with precision inductors designed for high performance.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
EMI/RFI Filter Inductors
$39.99
Quantity: 1
Claim Your Seller Account
EMI/RFI Filter Inductors
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The UT/ET Series Common Mode Inductors are expertly designed for the effective prevention of electromagnetic interference (EMI) and radio frequency interference (RFI) in power supply lines. These inductors feature low leakage flux, a high self-resonant frequency, and high impedance at applicable frequencies. With low stray capacitance in the winding section, they ensure optimal performance and reliability in diverse electronic applications.
Product Specifications
Specifications Configuration Type
Vertical
Specifications Current Rating
0.50 A
Specifications Dielectric Withstanding Voltage Ac
2,000 V
Specifications Features
Low Leakage FluxHigh Self-Resonant FrequencyHigh Impedance at Applicable FrequencyLow Stray Capacitance in Section Winding

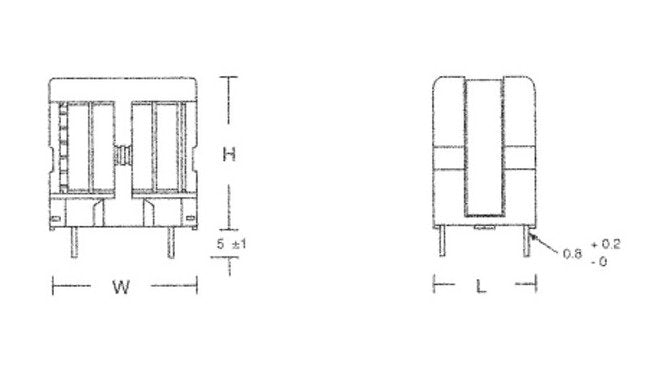

Specifications Height H
37 mm
Specifications Industry Standards
CSA | IEC | UL
Specifications Length L
23.5 mm
Specifications Max Dcr
2.6 Ohm
Specifications Max Inductance Difference
2,500 µH
Specifications Max Temperature Rise
45 ºC
Specifications Min Inductance
120.00 mH
Specifications Min Insulation Resistance
100 mOhm
Specifications Operating Temperature Range
-20 to 105 ºC
Specifications Pin Mounting A
13.0 mm
Specifications Pin Mounting B
10.0 mm
Specifications Rated Voltage Ac
250 V
Specifications Weight
1.40 oz
Specifications Width W
31.5 mm
Technical Notes 0
The inductance difference measures between the coil L1 and L2.
