The UT/ET Series Common Mode Inductors are essential components for mitigating electromagnetic interference and radio frequency interference in various electronic equipment. Designed with a focus on low leakage flux, high self-resonant frequency, high impedance, and low stray capacitance, these inductors excel in maintaining signal integrity and preventing malfunctioning. With a vertical configuration, a minimum inductance of 2.50 mH, and meeting industry standards such as CSA, IEC, and UL, these inductors are ideal for applications requiring reliable EMI/RFI suppression.
Product Specifications
Specifications Configuration Type
Vertical
Specifications Current Rating
0.7 A
Specifications Dielectric Withstanding Voltage Ac
2,000 V
Specifications Features
Low Leakage FluxHigh Self-Resonant FrequencyHigh Impedance at Applicable FrequencyLow Stray Capacitance in Section Winding

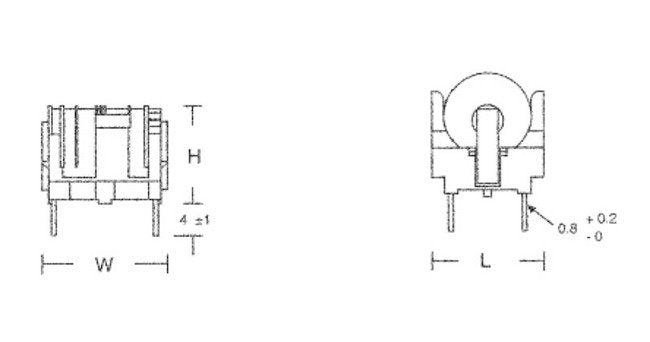

Specifications Height H
23.5 mm
Specifications Industry Standards
CSA | IEC | UL
Specifications Length L
18.5 mm
Specifications Max Dcr
0.4 Ohm
Specifications Max Inductance Difference
200 µH
Specifications Max Temperature Rise
45 ºC
Specifications Min Inductance
2.50 mH
Specifications Min Insulation Resistance
100 mOhm
Specifications Operating Temperature Range
-20 to 105 ºC
Specifications Pin Mounting A
13.0 mm
Specifications Pin Mounting B
10.0 mm
Specifications Rated Voltage Ac
250 V
Specifications Weight
0.52 oz
Specifications Width W
23 mm
Technical Notes 0
The inductance difference measures between the coil L1 and L2.
