EMI & RFI Prevention Common Mode Inductors

Name: EMI & RFI Prevention Common Mode Inductors
Brand: Triad Magnetics
SKU: IND-1be7ba
Price: 24.99 USD
Availability: OutOfStock

SKU:IND-1be7ba

Prevent EMI & RFI with our high-performance Common Mode Inductors. Low leakage flux, high impedance, and compliance with CSA, IEC, and UL standards.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

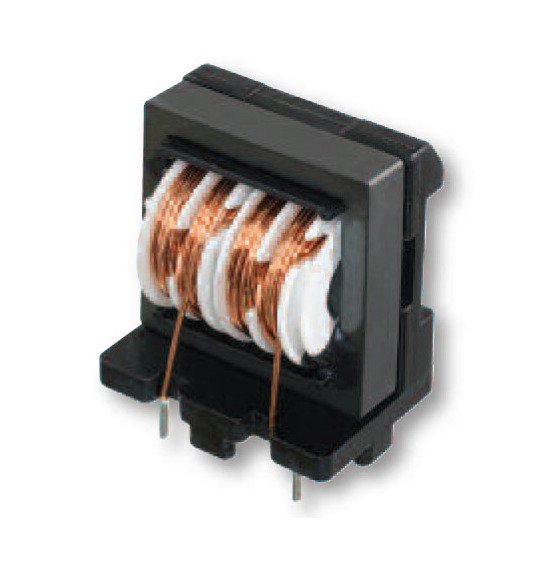

Ideal for EMI and RFI prevention in various electronic equipment, the UT/ET Series Common Mode Inductors offer low leakage flux, high self-resonant frequency, and high impedance at applicable frequencies. With features including low stray capacitance and a rated voltage of 250V, these inductors are designed for vertical configuration with precise specifications meeting industry standards such as CSA, IEC, and UL.

Product Specifications

Specifications Configuration Type

Vertical

Specifications Current Rating

0.50 A

Specifications Dielectric Withstanding Voltage Ac

2,000 V

Specifications Features

Low Leakage FluxHigh Self-Resonant FrequencyHigh Impedance at Applicable FrequencyLow Stray Capacitance in Section Winding

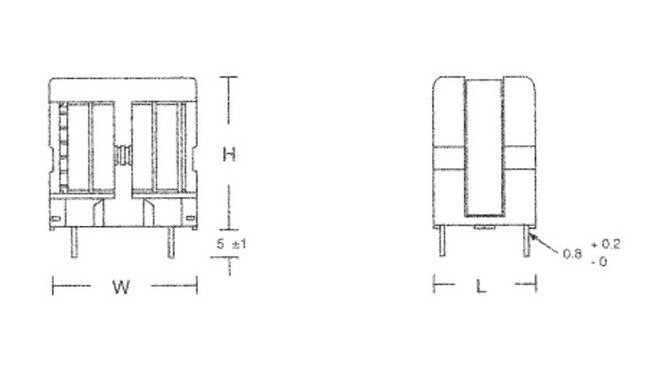

Specifications Height H

31 mm

Specifications Industry Standards

CSA | IEC | UL

Specifications Length L

19.5 mm

Specifications Max Dcr

2.7 Ohm

Specifications Max Inductance Difference

400 ÂµH

Specifications Max Temperature Rise

45 ÂºC

Specifications Min Inductance

36.00 mH

Specifications Min Insulation Resistance

100 mOhm

Specifications Operating Temperature Range

-20 to 105 ÂºC

Specifications Pin Mounting A

13.0 mm

Specifications Pin Mounting B

10.0 mm

Specifications Rated Voltage Ac

250 V

Specifications Weight

0.88 oz

Specifications Width W

26.5 mm

Technical Notes 0

The inductance difference measures between the coil L1 and L2.
