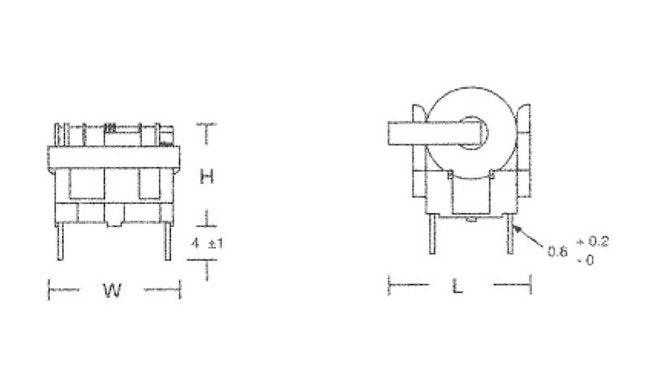

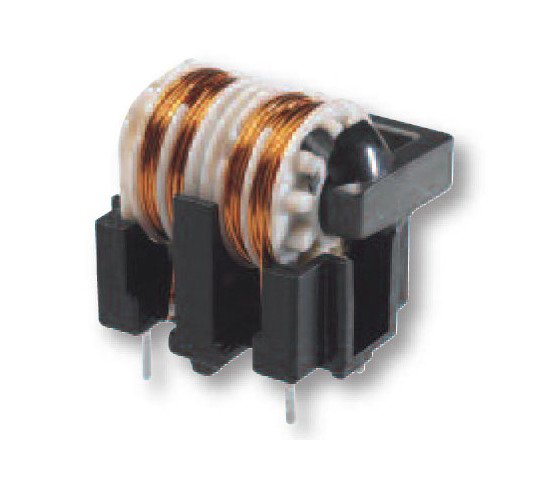

The UT/ET Series Common Mode Inductors are essential components for thwarting electromagnetic interference (EMI) and radio frequency interference (RFI) in power supply lines. With a focus on performance, these inductors boast low leakage flux, high self-resonant frequency, and high impedance at applicable frequencies. Featuring a compact design with dimensions 24.5mm (W) x 23mm (L) x 20mm (H), they offer a max temperature rise of 45ºC and meet industry standards including CSA, IEC, and UL.
Product Specifications
Specifications Configuration Type
Horizontal
Specifications Current Rating
0.6 A
Specifications Dielectric Withstanding Voltage Ac
2,000 V
Specifications Features
High Impedance at Applicable Frequency | High Self-Resonant Frequency | Low Leakage Flux | Low Stray Capacitance in Section Winding
Specifications Height H
20 mm
Specifications Industry Standards
CSA | IEC | UL
Specifications Length L
23 mm
Specifications Max Dcr
0.75 Ohm
Specifications Max Inductance Difference
250 µH
Specifications Max Temperature Rise
45 ºC
Specifications Min Inductance
4.50 mH
Specifications Min Insulation Resistance
100 mOhm
Specifications Operating Temperature Range
-20 to 105 ºC
Specifications Pin Mounting A
13.0 mm
Specifications Pin Mounting B
10.0 mm
Specifications Rated Voltage Ac
250 V
Specifications Weight
0.52 oz
Specifications Width W
24.5 mm
Technical Notes 0
The inductance difference measures between the coil L1 and L2.
