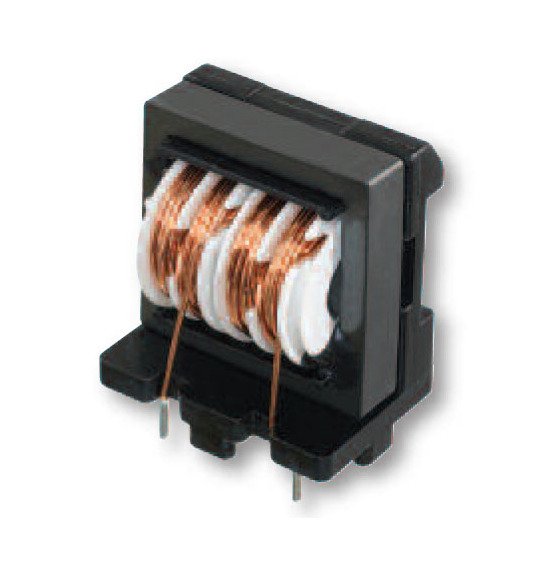

The UT/ET Series Common Mode Inductors are essential components for combating electromagnetic interference (EMI) and radio frequency interference (RFI) in power supply lines. With low leakage flux, high self-resonant frequency, and high impedance at applicable frequencies, these inductors ensure optimal performance and prevent malfunctions in electronic equipment. Featuring low stray capacitance in section winding, they are designed for reliability and efficiency in a wide range of applications.
Product Specifications
Specifications Configuration Type
Vertical
Specifications Current Rating
4.00 A
Specifications Dielectric Withstanding Voltage Ac
2,000 V
Specifications Features
Low Leakage FluxHigh Self-Resonant FrequencyHigh Impedance at Applicable FrequencyLow Stray Capacitance in Section Winding
Specifications Industry Standards
CSA | IEC | UL
Specifications Max Dcr
0.08 Ohm

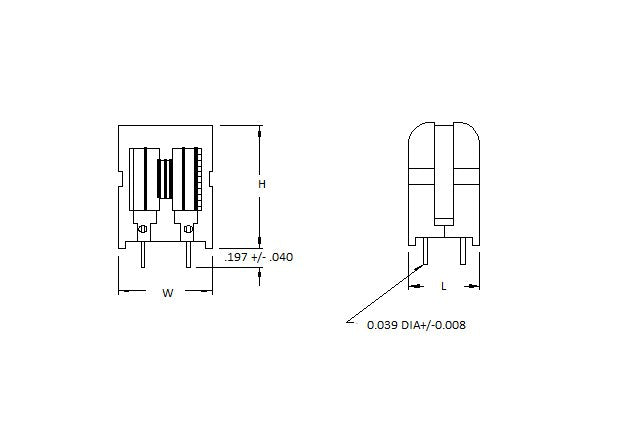

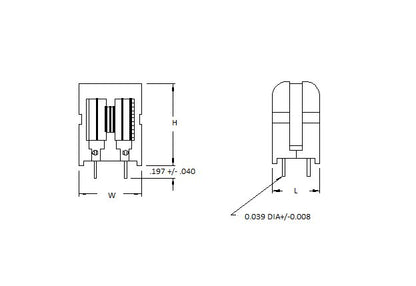

Specifications Max Height H
1.73 in | 43.94 mm
Specifications Max Inductance Difference
150 µH
Specifications Max Length L
1.06 in | 26.92 mm
Specifications Max Temperature Rise
45 ºC
Specifications Max Width W
1.46 in | 37.08 mm
Specifications Min Inductance
4.70 mH
Specifications Min Insulation Resistance
100 mOhm

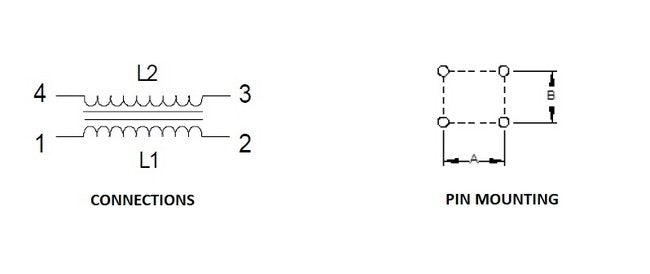

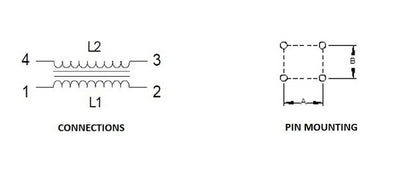

Specifications Nominal Pin Mounting A
0.827 in | 21.00 mm
Specifications Nominal Pin Mounting B
0.591 in | 15.01 mm
Specifications Operating Temperature Range
-20 to 105 ºC
Specifications Rated Voltage Ac
250 V
Specifications Weight
2.60 oz
Technical Notes 0
The inductance difference measures between the coil L1 and L2.
