EMI/RFI Suppression Inductor - UT/ET Series
EMI/RFI Suppression Inductor - UT/ET Series
SKU:IND-bd0d07
Combat EMI/RFI effectively with UT/ET Series Inductors. Industry-compliant.
Regular price
$25.99
Regular price
Sale price
$25.99
Unit price
per
Initiate Order
EMI/RFI Suppression Inductor - UT/ET Series
$25.99
Quantity: 1
Claim Your Seller Account
EMI/RFI Suppression Inductor - UT/ET Series
$25.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The UT/ET Series Common Mode Inductors are essential components for combating electromagnetic interference (EMI) and radio frequency interference (RFI). These inductors boast a vertical configuration, with a minimum inductance of 6.00 mH and a maximum inductance difference of 200 µH. Featuring low leakage flux, high impedance at applicable frequencies, and low stray capacitance, these inductors ensure optimal performance in preventing malfunctioning of electronic equipment. With industry standards including CSA, IEC, and UL compliance, these inductors meet the stringent requirements for institutional and government procurement.
Product Specifications
Specifications Configuration Type
Vertical
Specifications Current Rating
3.50 A
Specifications Dielectric Withstanding Voltage Ac
2,000 V
Specifications Features
Low Leakage FluxHigh Self-Resonant FrequencyHigh Impedance at Applicable FrequencyLow Stray Capacitance in Section Winding
Specifications Industry Standards
CSA | IEC | UL
Specifications Max Dcr
0.1 Ohm

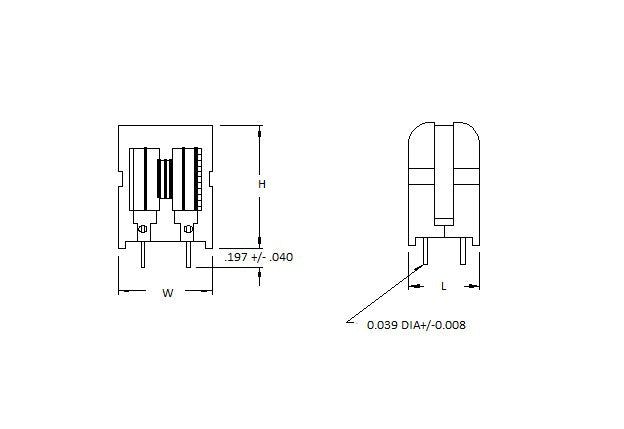

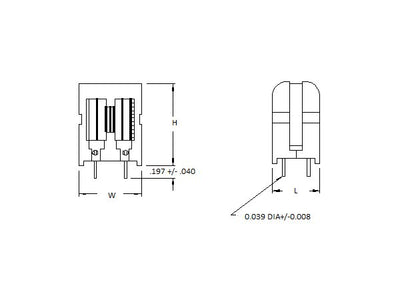

Specifications Max Height H
1.73 in | 43.94 mm
Specifications Max Inductance Difference
200 µH
Specifications Max Length L
1.06 in | 26.92 mm
Specifications Max Temperature Rise
45 ºC
Specifications Max Width W
1.46 in | 37.08 mm
Specifications Min Inductance
6.00 mH
Specifications Min Insulation Resistance
100 mOhm
Specifications Nominal Pin Mounting A
0.827 in | 21.00 mm
Specifications Nominal Pin Mounting B
0.591 in | 15.01 mm
Specifications Operating Temperature Range
-20 to 105 ºC
Specifications Rated Voltage Ac
250 V
Specifications Weight
2.60 oz
Technical Notes 0

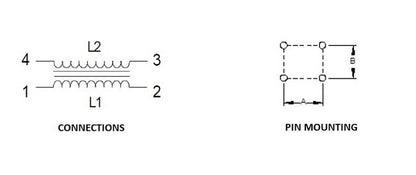

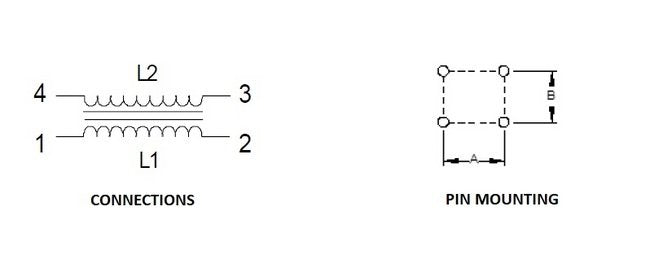

The inductance difference measures between the coil L1 and L2.
