The UT/ET Series Common Mode Inductors are essential components designed to effectively reduce electromagnetic interference (EMI) and radio frequency interference (RFI) in various electronic applications. With features like low leakage flux, high self-resonant frequency, and low stray capacitance, these inductors offer reliable performance. Their vertical configuration, high impedance, and 250V AC rated voltage make them ideal for ensuring the proper functioning of electronic equipment. Measuring 31.5mm in width, 23.5mm in length, and 37mm in height, these inductors provide precise inductance ranging from 8.00 mH to 150 µH with a maximum DCR of 0.19 Ohm.
Product Specifications
Specifications Configuration Type
Vertical
Specifications Current Rating
2.50 A
Specifications Dielectric Withstanding Voltage Ac
2,000 V
Specifications Features
Low Leakage FluxHigh Self-Resonant FrequencyHigh Impedance at Applicable FrequencyLow Stray Capacitance in Section Winding

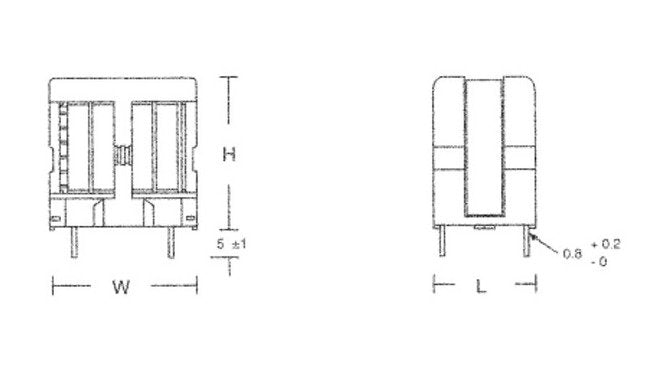

Specifications Height H
37 mm
Specifications Industry Standards
CSA | IEC | UL
Specifications Length L
23.5 mm
Specifications Max Dcr
0.19 Ohm
Specifications Max Inductance Difference
150 µH
Specifications Max Temperature Rise
45 ºC
Specifications Min Inductance
8.00 mH
Specifications Min Insulation Resistance
100 mOhm
Specifications Operating Temperature Range
-20 to 105 ºC
Specifications Pin Mounting A
13.0 mm
Specifications Pin Mounting B
10.0 mm
Specifications Rated Voltage Ac
250 V
Specifications Weight
1.40 oz
Specifications Width W
31.5 mm
Technical Notes 0
The inductance difference measures between the coil L1 and L2.
