The UT/ET Series Common Mode Inductors are expertly designed to tackle electromagnetic interference (EMI) and radio frequency interference (RFI) in power supply lines, ensuring the smooth operation of electronic equipment. With features like low leakage flux, high self-resonant frequency, and high impedance at applicable frequencies, these inductors guarantee optimal performance. Their low stray capacitance in section winding further enhances functionality, making them ideal for a wide range of applications.
Product Specifications
Specifications Configuration Type
Horizontal
Specifications Current Rating
0.6 A
Specifications Dielectric Withstanding Voltage Ac
2,000 V
Specifications Features
High Impedance at Applicable Frequency | High Self-Resonant Frequency | Low Leakage Flux | Low Stray Capacitance in Section Winding

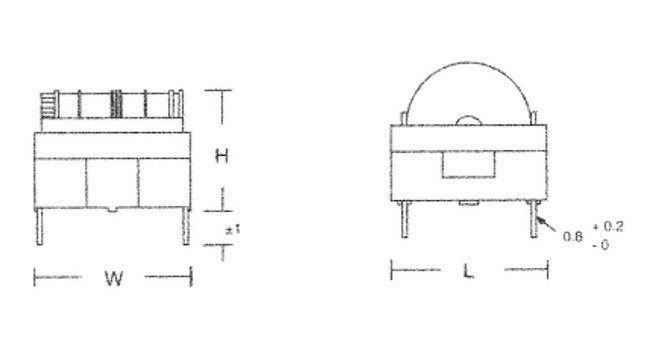

Specifications Height H
23 mm
Specifications Industry Standards
CSA | IEC | UL
Specifications Length L
26.5 mm
Specifications Max Dcr
1.6 Ohm
Specifications Max Inductance Difference
350 µH
Specifications Max Temperature Rise
45 ºC
Specifications Min Inductance
24.00 mH
Specifications Min Insulation Resistance
100 mOhm
Specifications Operating Temperature Range
-20 to 105 ºC
Specifications Pin Mounting A
21.0 mm
Specifications Pin Mounting B
15.0 mm
Specifications Rated Voltage Ac
250 V
Specifications Weight
0.88 oz
Specifications Width W
26.5 mm
Technical Notes 0
The inductance difference measures between the coil L1 and L2.
