The UT/ET Series Common Mode Inductors are essential components for mitigating electromagnetic interference (EMI) and radio frequency interference (RFI) across a range of applications. Featuring a horizontal configuration with a Min. Inductance of 15.50 mH and Max. Inductance Difference of 350 µH, these inductors offer high impedance at the applicable frequency, low leakage flux, and low stray capacitance in section winding. With a Max. DCR of 0.32 Ohm and a Current Rating of 1.50 A, these inductors ensure reliable performance and optimal EMI/RFI suppression. They meet industry standards including CSA, IEC, and UL for quality assurance.
Product Specifications
Specifications Configuration Type
Horizontal
Specifications Current Rating
1.50 A
Specifications Dielectric Withstanding Voltage Ac
2,000 V
Specifications Features
High Impedance at Applicable Frequency | High Self-Resonant Frequency | Low Leakage Flux | Low Stray Capacitance in Section Winding

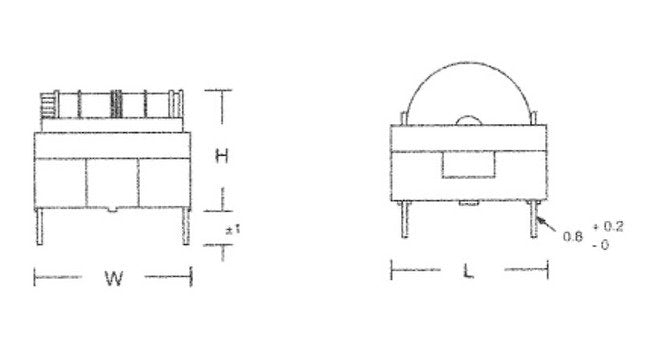

Specifications Height H
25 mm
Specifications Industry Standards
CSA | IEC | UL
Specifications Length L
30 mm
Specifications Max Dcr
0.32 Ohm
Specifications Max Inductance Difference
350 µH
Specifications Max Temperature Rise
45 ºC
Specifications Min Inductance
15.50 mH
Specifications Min Insulation Resistance
100 mOhm
Specifications Operating Temperature Range
-20 to 105 ºC
Specifications Pin Mounting A
24.0 mm
Specifications Pin Mounting B
20.0 mm
Specifications Rated Voltage Ac
250 V
Specifications Weight
1.40 oz
Specifications Width W
30 mm
Technical Notes 0
The inductance difference measures between the coil L1 and L2.
