EMI/RFI Suppression Inductors - UT/ET Series
EMI/RFI Suppression Inductors - UT/ET Series
SKU:IND-2dd19a
Enhance equipment performance with UT/ET Series Inductors, reducing EMI/RFI interference. High impedance, low stray capacitance, industry-standard compliant.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
EMI/RFI Suppression Inductors - UT/ET Series
$29.99
Quantity: 1
Claim Your Seller Account
EMI/RFI Suppression Inductors - UT/ET Series
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The UT/ET Series Common Mode Inductors are vital components for mitigating electromagnetic interference (EMI) and radio frequency interference (RFI) along power supply lines, ensuring optimal performance of electronic equipment. Featuring low leakage flux, high self-resonant frequency, and low stray capacitance, these inductors provide exceptional impedance at applicable frequencies. With a robust design including vertical configuration, high current rating, and compliance with industry standards like CSA, IEC, and UL, these inductors are ideal for diverse applications requiring reliable EMI suppression.
Product Specifications
Specifications Configuration Type
Vertical
Specifications Current Rating
2.00 A
Specifications Dielectric Withstanding Voltage Ac
2,000 V
Specifications Features
Low Leakage FluxHigh Self-Resonant FrequencyHigh Impedance at Applicable FrequencyLow Stray Capacitance in Section Winding

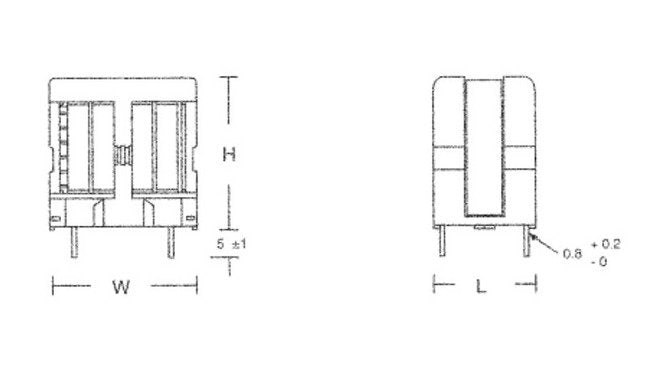

Specifications Height H
37 mm
Specifications Industry Standards
CSA | IEC | UL
Specifications Length L
23.5 mm
Specifications Max Dcr
0.25 Ohm
Specifications Max Inductance Difference
200 µH
Specifications Max Temperature Rise
45 ºC
Specifications Min Inductance
10.00 mH
Specifications Min Insulation Resistance
100 mOhm
Specifications Operating Temperature Range
-20 to 105 ºC
Specifications Pin Mounting A
13.0 mm
Specifications Pin Mounting B
10.0 mm
Specifications Rated Voltage Ac
250 V
Specifications Weight
1.40 oz
Specifications Width W
31.5 mm
Technical Notes 0
The inductance difference measures between the coil L1 and L2.
