The UT/ET Series Common Mode Inductors are essential components for EMI/RFI suppression in various electronic equipment applications. These choke coils excel in reducing electromagnetic interference and radio frequency interference, ensuring optimal performance and reliability. With features like low leakage flux, high self-resonant frequency, and high impedance at applicable frequencies, these inductors deliver superior protection against power supply line disruptions. Additionally, their low stray capacitance in section winding enhances overall efficiency and stability.
Product Specifications
Specifications Configuration Type
Horizontal
Specifications Current Rating
1.00 A
Specifications Dielectric Withstanding Voltage Ac
2,000 V
Specifications Features
High Impedance at Applicable Frequency | High Self-Resonant Frequency | Low Leakage Flux | Low Stray Capacitance in Section Winding

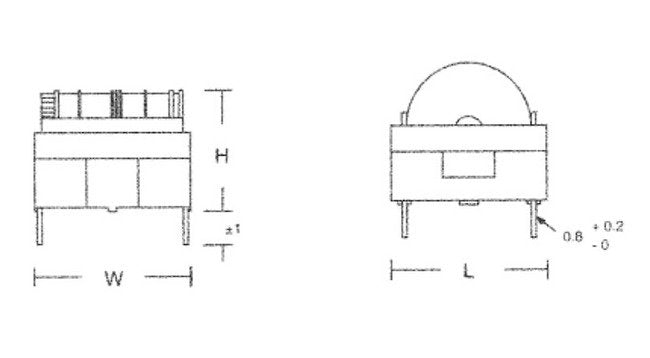

Specifications Height H
23 mm
Specifications Industry Standards
CSA | IEC | UL
Specifications Length L
26.5 mm
Specifications Max Dcr
0.340 Ohm
Specifications Max Inductance Difference
200 µH
Specifications Max Temperature Rise
45 ºC
Specifications Min Inductance
5.20 mH
Specifications Min Insulation Resistance
100 mOhm
Specifications Operating Temperature Range
-20 to 105 ºC
Specifications Pin Mounting A
21.0 mm
Specifications Pin Mounting B
15.0 mm
Specifications Rated Voltage Ac
250 V
Specifications Weight
0.88 oz
Specifications Width W
26.5 mm
Technical Notes 0
The inductance difference measures between the coil L1 and L2.
