The UT/ET Series Common Mode Inductors are essential components for mitigating electromagnetic interference (EMI) and radio frequency interference (RFI) in power supply lines and electronic systems. With features like low leakage flux, high self-resonant frequency, and high impedance at applicable frequencies, these inductors ensure optimal performance and reliability. Designed for vertical configuration, they offer a range of specifications including a min. inductance of 15.50 mH, max. DCR of 0.32 Ohm, and a rated voltage of 250 V. Compliant with industry standards such as CSA, IEC, and UL, these inductors meet the demands of government and institutional procurement requirements.
Product Specifications
Specifications Configuration Type
Vertical
Specifications Current Rating
1.50 A
Specifications Dielectric Withstanding Voltage Ac
2,000 V
Specifications Features
Low Leakage FluxHigh Self-Resonant FrequencyHigh Impedance at Applicable FrequencyLow Stray Capacitance in Section Winding

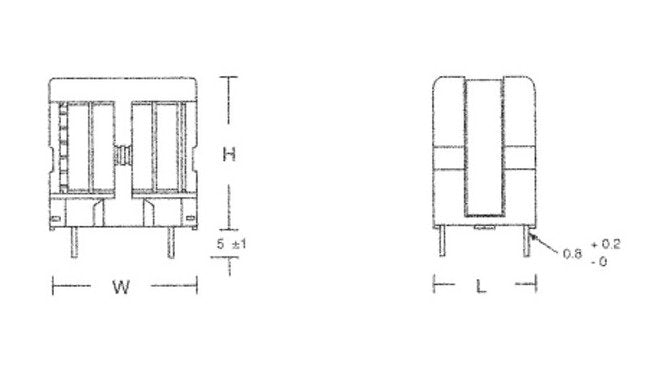

Specifications Height H
37 mm
Specifications Industry Standards
CSA | IEC | UL
Specifications Length L
23.5 mm
Specifications Max Dcr
0.32 Ohm
Specifications Max Inductance Difference
350 µH
Specifications Max Temperature Rise
45 ºC
Specifications Min Inductance
15.50 mH
Specifications Min Insulation Resistance
100 mOhm
Specifications Operating Temperature Range
-20 to 105 ºC
Specifications Pin Mounting A
13.0 mm
Specifications Pin Mounting B
10.0 mm
Specifications Rated Voltage Ac
250 V
Specifications Weight
1.40 oz
Specifications Width W
31.5 mm
Technical Notes 0
The inductance difference measures between the coil L1 and L2.
