The UT/ET Series Common Mode Inductors are essential components for mitigating electromagnetic interference (EMI) and radio frequency interference (RFI) in power supply lines and electronic equipment. With features like low leakage flux, high self-resonant frequency, and low stray capacitance, these inductors offer reliable performance. Designed with a horizontal configuration and meeting industry standards including CSA, IEC, and UL, these inductors ensure high impedance at applicable frequencies, minimal inductance difference, and optimal EMI suppression.
Product Specifications
Specifications Configuration Type
Horizontal
Specifications Current Rating
0.50 A
Specifications Dielectric Withstanding Voltage Ac
2,000 V
Specifications Features
High Impedance at Applicable Frequency | High Self-Resonant Frequency | Low Leakage Flux | Low Stray Capacitance in Section Winding

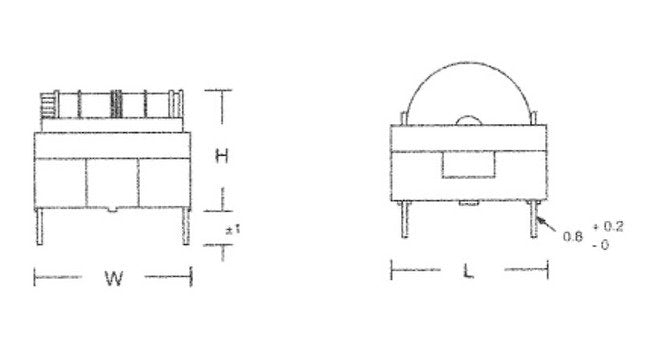

Specifications Height H
23 mm
Specifications Industry Standards
CSA | IEC | UL
Specifications Length L
26.5 mm
Specifications Max Dcr
2.7 Ohm
Specifications Max Inductance Difference
400 µH
Specifications Max Temperature Rise
45 ºC
Specifications Min Inductance
36.00 mH
Specifications Min Insulation Resistance
100 mOhm
Specifications Operating Temperature Range
-20 to 105 ºC
Specifications Pin Mounting A
21.0 mm
Specifications Pin Mounting B
15.0 mm
Specifications Rated Voltage Ac
250 V
Specifications Weight
0.88 oz
Specifications Width W
26.5 mm
Technical Notes 0
The inductance difference measures between the coil L1 and L2.
