The UT/ET Series EMI Suppression Inductors are essential components for reducing electromagnetic interference (EMI) and radio frequency interference (RFI) in power supply lines, ensuring optimal performance of electronic equipment. These inductors feature low leakage flux, high self-resonant frequency, high impedance at relevant frequencies, and low stray capacitance in winding sections. With a configuration type of Vertical and compliance with industry standards including CSA, IEC, and UL, these inductors guarantee reliable EMI suppression and operational stability.
Product Specifications
Specifications Configuration Type
Vertical
Specifications Current Rating
0.6 A
Specifications Dielectric Withstanding Voltage Ac
2,000 V
Specifications Features
Low Leakage FluxHigh Self-Resonant FrequencyHigh Impedance at Applicable FrequencyLow Stray Capacitance in Section Winding

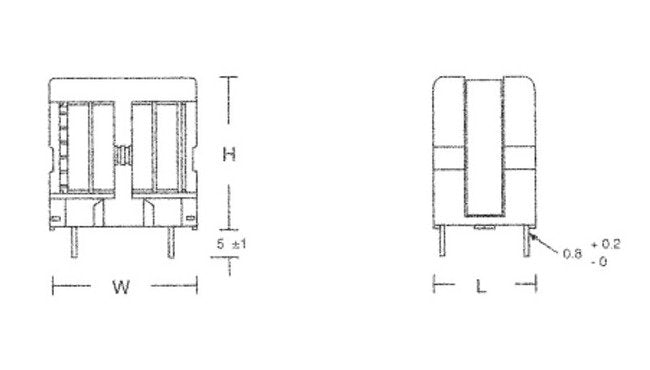

Specifications Height H
37 mm
Specifications Industry Standards
CSA | IEC | UL
Specifications Length L
23.5 mm
Specifications Max Dcr
2 Ohm
Specifications Max Inductance Difference
2,000 µH
Specifications Max Temperature Rise
45 ºC
Specifications Min Inductance
92.00 mH
Specifications Min Insulation Resistance
100 mOhm
Specifications Operating Temperature Range
-20 to 105 ºC
Specifications Pin Mounting A
13.0 mm
Specifications Pin Mounting B
10.0 mm
Specifications Rated Voltage Ac
250 V
Specifications Weight
1.40 oz
Specifications Width W
31.5 mm
Technical Notes 0
The inductance difference measures between the coil L1 and L2.
