EMI Suppression Toroidal Inductor - CMT908 Series
EMI Suppression Toroidal Inductor - CMT908 Series
SKU:IND-3ad5b9
Dependable EMI suppression inductor for power supplies, meets regulatory standards, compact design.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
EMI Suppression Toroidal Inductor - CMT908 Series
$29.99
Quantity: 1
Claim Your Seller Account
EMI Suppression Toroidal Inductor - CMT908 Series
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

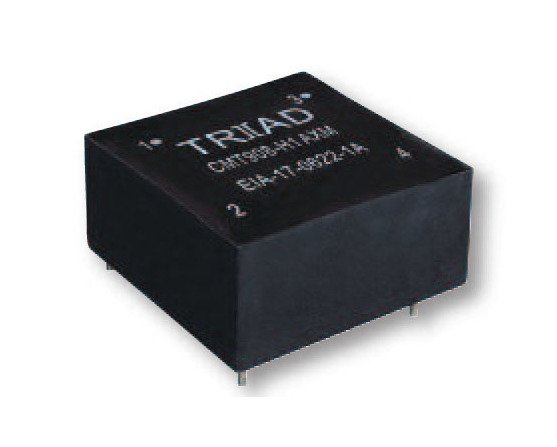

The Encapsulated Toroidal Inductor from the CMT908 Series offers reliable common mode EMI suppression, crucial in power supplies to eliminate noise. Designed to meet regulatory requirements, this inductor minimizes AC line interference from high frequency power supplies. With a minimum inductance of 2.00 mH and a maximum RMS current of 7.50 A, these inductors are compact and constructed with UL-rated 130°C materials.
Product Specifications
Note 0
A CMT908-KIT is available which includes one of each of the above listed components.

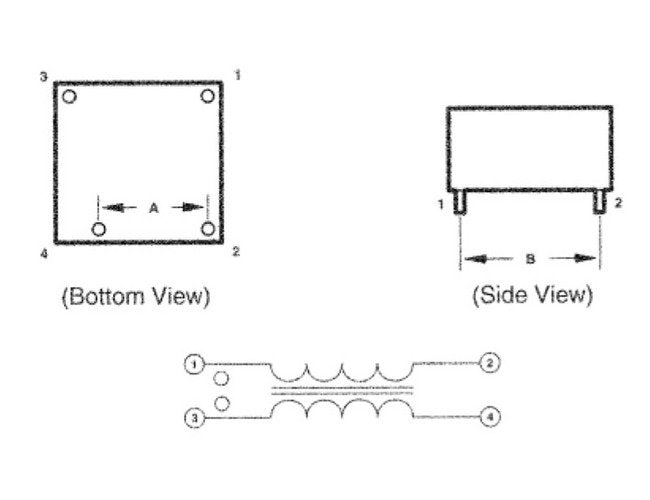

Specifications Dimension A
1.08 in
Specifications Dimension B
1.28 in
Specifications Dimension H
0.80 in
Specifications Dimension L
1.5 in
Specifications Dimension W
1.5 in
Specifications Industry Standards
CSA | IEC | UL | VDE
Specifications Max Dc Resistance
0.020 Ohm
Specifications Min Inductance
2.00 mH
Specifications Min Leakage
25.0 µH
Specifications Rms Current
7.50 A
Specifications Weight
0.120 lb
Technical Notes 0
Hi-pot tested at 2500 VRMS.DC resistance at 20 ºC ±10%.Inductances are minimum measured at 10 Gauss. Current rating for approximately 40 ºC temperature rise.
