EMP 1 1/2 Low Profile 12VDC Electromagnet
EMP 1 1/2 Low Profile 12VDC Electromagnet
SKU:EMP-8f76fa
Versatile EMP 1 1/2 Low Profile 12VDC Electromagnet for efficient and precise lifting applications. Suitable for various workpiece sizes and types.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
EMP 1 1/2 Low Profile 12VDC Electromagnet
$89.99
Quantity: 1
Claim Your Seller Account
EMP 1 1/2 Low Profile 12VDC Electromagnet
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

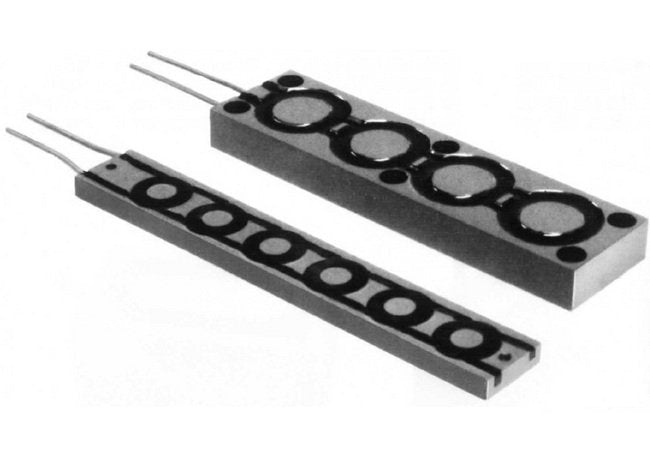

The EMP 1 1/2 Series 12 VDC Low Profile Electromagnet is a versatile solution for lifting applications. With a low profile height of 1/2 in., this electromagnet boasts a multiple pole design and large pole area, providing a shallow field depth and excellent pounds-per-square-inch ratings. Perfect for lifting one sheet at a time off a stack, it can be used individually for small tasks or in multiples on a spreader bar for larger workpieces. Compatible with rectifier-controllers equipped with variable power, ensuring efficient and precise control. Ideal for industrial, manufacturing, and automation settings.
Ready to Grow Without Cash Flow Constraints?

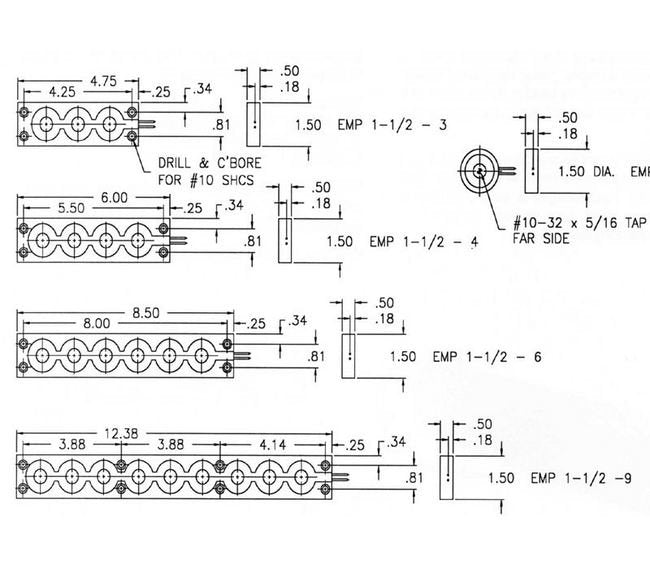

Product Specifications
Manufacturing Notes 0
Any group of 12 volt electromagnets to be energized by a single rectifier-controller should not exceed 100 watts.Automated systems require âAU Seriesâ Rectifier-ControllersManual applications require âMA or MR Seriesâ Rectifier-ControllersConsult factory for applications information and optional magnet also and controller configuration
Specifications Dc Voltage
12 V
Specifications Height
1/2 in
Specifications Length A
8 1/2 in
Specifications Mounting Screw
#10 Socket Head Screws
Specifications Net Weight
3 oz | 1 lb
Specifications Power
16.8 W
Specifications Thickness Of Cross Section
1/2 in
Specifications Width Of Cross Section
1 1/2 in
