EMP 1 1/2 Series 12 VDC Electromagnet
EMP 1 1/2 Series 12 VDC Electromagnet
SKU:EMP-ef8f55
Enhance efficiency with the EMP 1 1/2 Series 12 VDC Electromagnet for precise lifting and powerful performance on thin materials.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
EMP 1 1/2 Series 12 VDC Electromagnet
$79.99
Quantity: 1
Claim Your Seller Account
EMP 1 1/2 Series 12 VDC Electromagnet
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

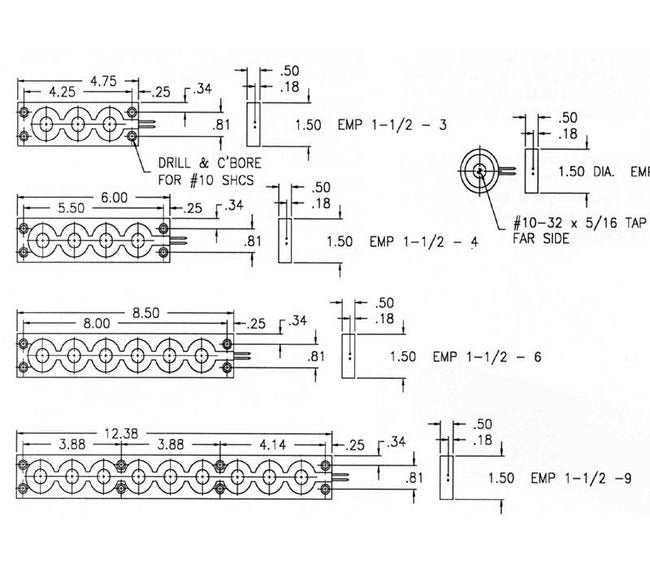

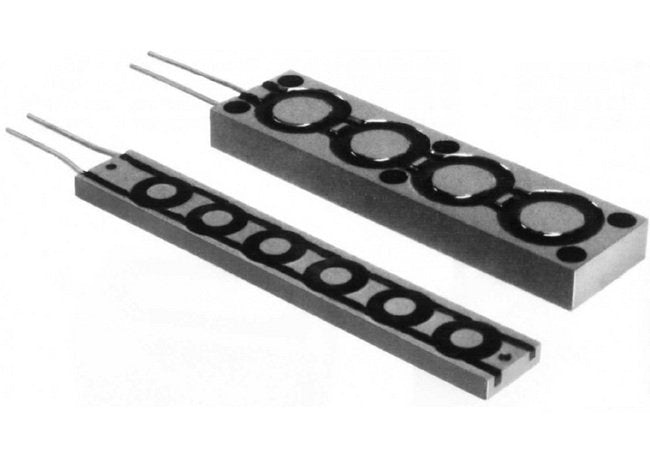

The EMP 1 1/2 Series 12 VDC Low Profile Electromagnet is a powerhouse in efficiency and precision. With a slim height of just 1/2 in., it boasts a multiple pole design and a large pole area that creates a shallow field depth with exceptional pounds-per-square-inch ratings, ideal for thin materials. Whether used individually for small projects or in multiples on a spreader bar for larger workpieces, its performance is unmatched. Pair it with rectifier-controllers equipped with variable power for lifting one sheet at a time off a stack. This electromagnet ensures reliable and versatile use across various applications.
Product Specifications
Manufacturing Notes 0
Any group of 12 volt electromagnets to be energized by a single rectifier-controller should not exceed 100 watts.Automated systems require âAU Seriesâ Rectifier-ControllersManual applications require âMA or MR Seriesâ Rectifier-ControllersConsult factory for applications information and optional magnet also and controller configuration
Specifications Dc Voltage
12 V
Specifications Height
1/2 in
Specifications Length A
6 in
Specifications Mounting Screw
#10 Socket Head Screws
Specifications Net Weight
14 oz
Specifications Power
11.2 W
Specifications Thickness Of Cross Section
1/2 in
Specifications Width Of Cross Section
1 1/2 in
