EMP 1 1/2 Series 12 VDC Low Profile Electromagnet
EMP 1 1/2 Series 12 VDC Low Profile Electromagnet
SKU:EMP-30578d
Enhance lifting efficiency with the EMP 1 1/2 Series 12 VDC Low Profile Electromagnet. Ideal for thin materials, this electromagnet offers reliable performance for various industrial lifting applications.
Regular price
$169.99
Regular price
Sale price
$169.99
Unit price
per
Initiate Order
EMP 1 1/2 Series 12 VDC Low Profile Electromagnet
$169.99
Quantity: 1
Claim Your Seller Account
EMP 1 1/2 Series 12 VDC Low Profile Electromagnet
$169.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

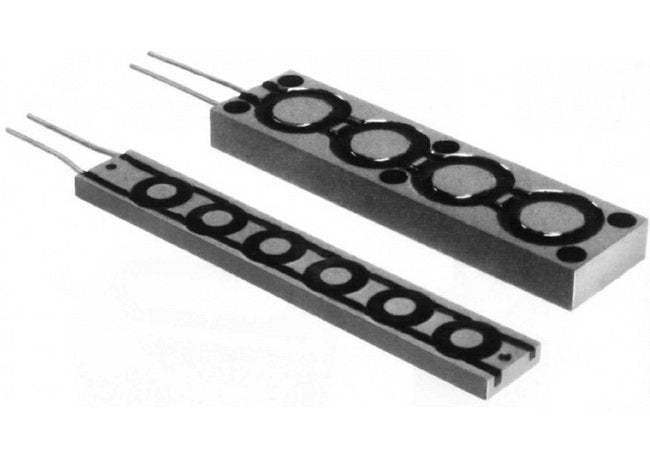

The EMP 1 1/2 Series 12 VDC Low Profile Electromagnet is designed for optimal performance in lifting applications. With a low profile height of 1/2 in., multiple pole design, and large pole area, it offers a shallow field depth and excellent pounds-per-square-inch ratings for enhanced performance on thin materials. Whether used individually for small tasks or in multiples on a spreader bar for larger workpieces, this electromagnet delivers reliable lifting power. Additionally, when paired with rectifier-controllers equipped with variable power, it can efficiently lift one sheet at a time off a stack. Designed for versatility and efficiency, the EMP 1 1/2 Series is a dependable solution for various industrial applications.
Product Specifications
Manufacturing Notes 0
Any group of 12 volt electromagnets to be energized by a single rectifier-controller should not exceed 100 watts.Automated systems require âAU Seriesâ Rectifier-ControllersManual applications require âMA or MR Seriesâ Rectifier-ControllersConsult factory for applications information and optional magnet also and controller configuration
Specifications Dc Voltage
12 V
Specifications Height
1/2 in
Specifications Length A
12 3/8 in
Specifications Mounting Screw
#10 Socket Head Screws
Specifications Net Weight
10 oz | 1 lb
Specifications Power
25.7 W
Specifications Thickness Of Cross Section
1/2 in
Specifications Width Of Cross Section
1 1/2 in
