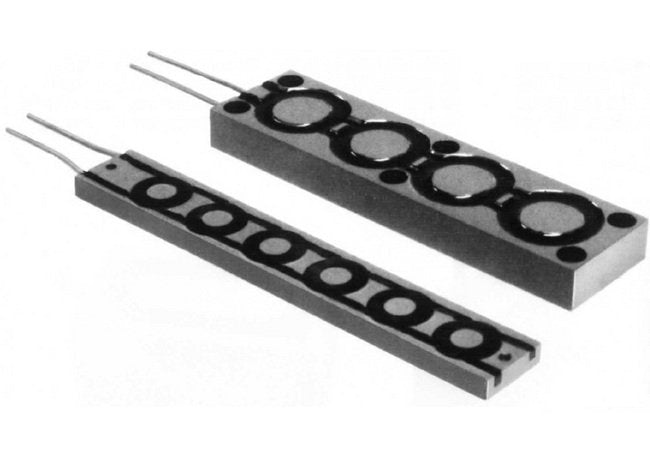

EMP 1 1/2 Series Low Profile Electromagnet - 12 VDC
EMP 1 1/2 Series Low Profile Electromagnet - 12 VDC
SKU:EMP-f0945e
Enhance productivity with the EMP 1 1/2 Series Low Profile Electromagnet - 12 VDC, designed for superior lifting capabilities in thin materials.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
EMP 1 1/2 Series Low Profile Electromagnet - 12 VDC
$49.99
Quantity: 1
Claim Your Seller Account
EMP 1 1/2 Series Low Profile Electromagnet - 12 VDC
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The EMP 1 1/2 Series 12 VDC Low Profile Electromagnet is designed for optimal performance in thin materials. With a low profile height of 1/2 in., multiple pole design, and large pole area, it offers superior pounds-per-square-inch ratings. This electromagnet can be used singly for small tasks or in multiples on a spreader bar for larger workpieces. When paired with rectifier-controllers with variable power, it can effortlessly lift one sheet off a stack at a time. Ideal for both manual and automated applications, this electromagnet ensures efficient operation and easy integration with various control systems.

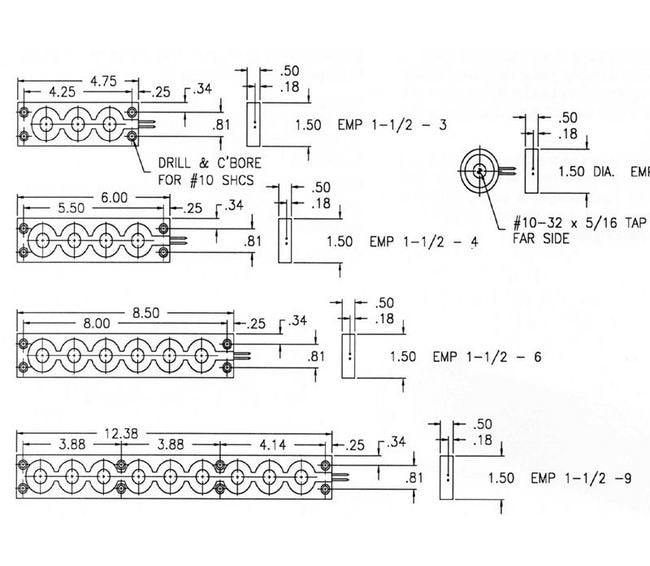

Product Specifications
Manufacturing Notes 0
Any group of 12 volt electromagnets to be energized by a single rectifier-controller should not exceed 100 watts.Automated systems require âAU Seriesâ Rectifier-ControllersManual applications require âMA or MR Seriesâ Rectifier-ControllersConsult factory for applications information and optional magnet also and controller configuration
Specifications Dc Voltage
12 V
Specifications Height
1/2 in
Specifications Length A
4 3/4 in
Specifications Mounting Screw
#10 Socket Head Screws
Specifications Net Weight
5 oz
Specifications Power
8.4 W
Specifications Thickness Of Cross Section
1/2 in
Specifications Width Of Cross Section
1 1/2 in
