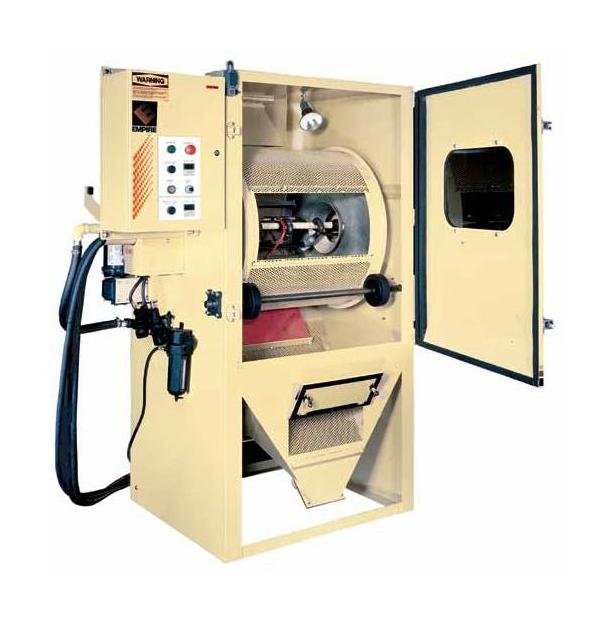

The Empire BB2 & BB4 Basket Blasters are heavy-duty production machines designed to accelerate the finishing of small parts with precision and efficiency. These machines automate the cleaning, peening, and finishing processes, delivering repeatable and high-quality results. Featuring a polyurethane-lined media reclaimer and pneumatically controlled blast nozzles, the BB2 & BB4 models ensure consistent finishes while reducing maintenance requirements. With robust construction and user-friendly operation, these Basket Blasters are ideal for institutional and government buyers requiring reliable and efficient finishing solutions.
Product Specifications
Basket Blaster Options 0
Boron carbide nozzles (recommended with aluminum oxide)Coated basketAutomatic bag shaker or photohelic-controlled pulse-jet cleaning for cartridge-type dust collectorsAutomatic blow-off cycleSignal light to indicate cycle completionNon-standard voltages50 Hz operationLarger 7/16guns (BB4-3K requires 156 SCFM at 60 psi)Smaller 1/4" guns BB4-3K requires 51 SCFM at 60 psi)High-capacity fan for oversized mediaSmall-parts barrel with 1/8" diameter perforationsBarrel kick flights for more even processing of partsCDC-6 cartridge-type dust collectors"
Dust Collection 0

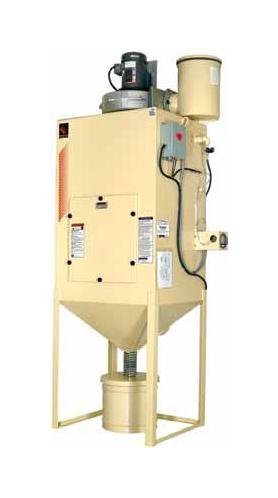

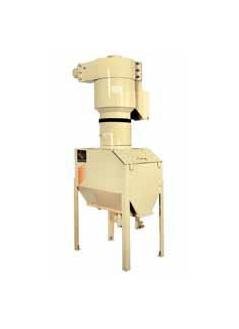

In addition to bag-house units, we offer a cartridge dust collector with both basket blaster models. The vertical cartridges in the CDC-6 are easy to replace and provide a filtration area of 452 square feet which captures 99.999% of particles one-half micron or larger. With either the bag-house or cartridge collectors, air can normally be recirculated to the workplace, thereby reducing HVAC costs.
Features Bb2 Bb4 Basket Blaster Features
BB2 & BB4 Basket Blaster Features
Media 0
Empire basket blasters are designed for use with glass bead (180 mesh or larger), aluminum oxide (40 to 200 mesh), steel grit (G-125 to G-200), steel shot (S-70), and nutshells or plastic of any size. Consult Empire for recommendations concerning other abrasives.
Media Reclamation 0
Basket-blaster reclaimers are tunable, meaning they can be adjusted to prevent and control the loss of fine, medium or coarse media. They also include a removable debris screen to prevent oversized material from clogging the nozzles, an easy-access door for quick media filling and a polyurethane liner that extends reclaimer life.
Specifications Basket Capacity
350 lbs | 37316 ft³
Specifications Basket Construction
11 gauge
Specifications Basket Diameter
30 in
Specifications Basket Width
30 in
Specifications Blast Guns
MH-2 Short Handle
Specifications Blast Guns Compressed Air At 60 Psi
81 scfm
Specifications Blast Guns Nozzle
Di-Carb®
Specifications Blast Guns Oscillation
Yes (Pneumatic)
Specifications Blast Guns Quantity
3
Specifications Blast Guns Size
5/16' with 5/32" jet
Specifications Cabinet Construction
14 gauge
Specifications Door Opening Height
11 in
Specifications Door Opening Width
24 in
Specifications Dust Collector Bag House Cloth Area
200 ft²
Specifications Dust Collector Bag House Fan Size
37257 hp
Specifications Dust Collector Bag House Model
DCM-200
Specifications Dust Collector Bag House Rated Cfm At 6 Sp
600
Specifications Dust Collector Cartridge Fan Size
1-1/2 hp
Specifications Dust Collector Cartridge Filter Area
452 ft²
Specifications Dust Collector Cartridge Model
CDC-6
Specifications Dust Collector Cartridge Rated Cfm At 6 Sp
600
Specifications Optional Coated Perforations Diameter
5/16 in or less
Specifications Optional Non Coated Perforations Diameter
1/8 in
Specifications Outside Dimensions D X W X H Cabinet With Reclaim
61 x 87 x 74 in
Specifications Outside Dimensions D X W X H Dust Collector
39 x 34 x 105 in
Specifications Reclaimer Construction
11 gauge
Specifications Reclaimer Rated Cfm
600
Specifications Standard Non Coated Perforations Diameter
5/16 in
Standard Features 0
Quick-release basket doorExternal blow-off gunDoor/blast interlockEasily unloaded hopper doorPrecision timer1/3-hp., DC variable drive (2 to 20 RPM)3-phase fan motorHeavy-duty conveying hoseLined, tunable reclaimer1" piping with general purpose filter, gauge and pressure regulatorElectrical control boxTwo, 90-watt interior lightsEasily accessed media hopperObservation windowCabinet and dust-collector leveling bolts
Warranty 0
BEST WARRANTY IN THE INDUSTRYThree-years limited on parts and laborEmpire Air-Blast ProductsA complete range of cabinetsRobotic, turntable and in-line automationBlast rooms and blast boothsPortable blastersA full line of parts and accessoriesNEVER USE SILICA SAND IN ANY EMPIRE EQUIPMENTInformation subject to change without notice.
