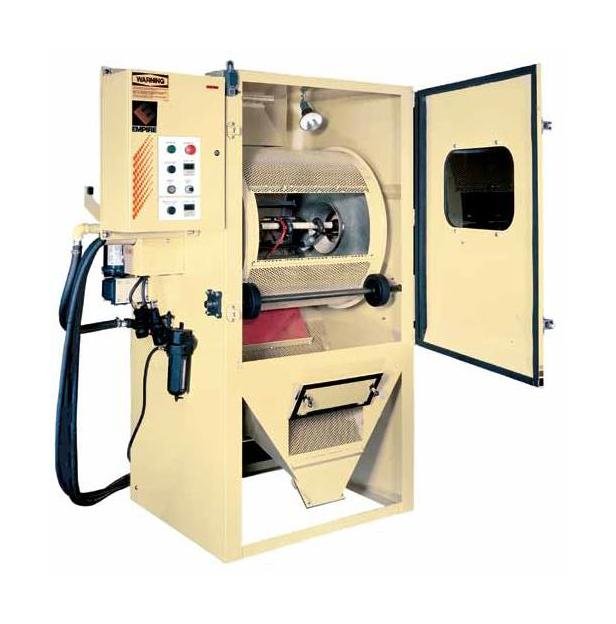

The Empire BB2 & BB4 Basket Blasters are heavy-duty production machines designed to streamline the cleaning, peening, and finishing of small workpieces. These automated machines offer high-speed processing of up to 300 pounds per cycle, delivering consistent and repeatable results. Featuring durable construction and precision controls, the BB2 & BB4 models are equipped with advanced features like oscillating blast nozzles for increased efficiency and reduced power consumption. With quick-loading capabilities, polyurethane-lined media reclaimer, and customizable options for different abrasives, these Basket Blasters are ideal for industrial use where quality and efficiency are paramount.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Basket Blaster Options 0
Boron carbide nozzles (recommended with aluminum oxide)Coated basketAutomatic bag shaker or photohelic-controlled pulse-jet cleaning for cartridge-type dust collectorsAutomatic blow-off cycleSignal light to indicate cycle completionNon-standard voltages50 Hz operationBasket cover assembly for light parts (BB2-3K only)Larger 7/16guns (BB2-3K requires 104 SCFM at 60 psiSmaller 1/4" guns (BB2-3K requires 34 SCFM at 60 psiHigh-capacity fan for oversized mediaSmall-parts barrel with 1/8" diameter perforationsBarrel kick flights for more even processing of partsCDC-6 cartridge-type dust collectors"
Dust Collection 0

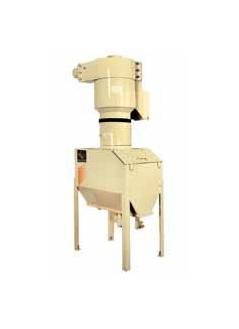

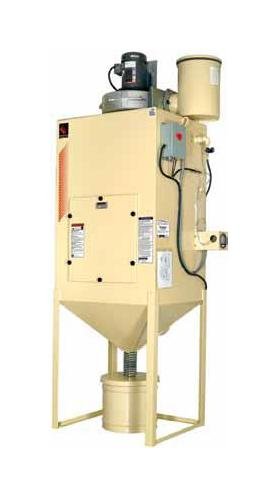

In addition to bag-house units, we offer a cartridge dust collector with both basket blaster models. The vertical cartridges in the CDC-6 are easy to replace and provide a filtration area of 452 square feet which captures 99.999% of particles one-half micron or larger. With either the bag-house or cartridge collectors, air can normally be recirculated to the workplace, thereby reducing HVAC costs.
Features Bb2 Bb4 Basket Blaster Features
BB2 & BB4 Basket Blaster Features
Media 0
Empire basket blasters are designed for use with glass bead (180 mesh or larger), aluminum oxide (40 to 200 mesh), steel grit (G-125 to G-200), steel shot (S-70), and nutshells or plastic of any size. Consult Empire for recommendations concerning other abrasives.
Media Reclamation 0
Basket-blaster reclaimers are tunable, meaning they can be adjusted to prevent and control the loss of fine, medium or coarse media. They also include a removable debris screen to prevent oversized material from clogging the nozzles, an easy-access door for quick media filling and a polyurethane liner that extends reclaimer life.
Specifications Basket Capacity
300 lbs | 37257 ft³
Specifications Basket Construction
11 gauge
Specifications Basket Diameter
30 in
Specifications Basket Width
16 in
Specifications Blast Guns
MH-2 Short Handle
Specifications Blast Guns Compressed Air At 60 Psi
54 scfm
Specifications Blast Guns Nozzle
Di-Carb®
Specifications Blast Guns Oscillation
No
Specifications Blast Guns Quantity
2
Specifications Blast Guns Size
5/16' with 5/32" jet
Specifications Cabinet Construction
14 gauge
Specifications Door Opening Height
11 in
Specifications Door Opening Width
10 in
Specifications Dust Collector Bag House Cloth Area
80 ft²
Specifications Dust Collector Bag House Fan Size
1 hp
Specifications Dust Collector Bag House Model
DCM-80A
Specifications Dust Collector Bag House Rated Cfm At 6 Sp
400
Specifications Dust Collector Cartridge Fan Size
1-1/2 hp
Specifications Dust Collector Cartridge Filter Area
452 ft²
Specifications Dust Collector Cartridge Model
CDC-6
Specifications Dust Collector Cartridge Rated Cfm At 6 Sp
600
Specifications Optional Coated Perforations Diameter
5/16 in or less
Specifications Optional Non Coated Perforations Diameter
1/8 in
Specifications Outside Dimensions D X W X H Cabinet With Reclaim
61 x 56 x 74 in
Specifications Outside Dimensions D X W X H Dust Collector
26 x 22 x 98 in
Specifications Reclaimer Construction
11 gauge
Specifications Reclaimer Rated Cfm
400 | 600
Specifications Standard Non Coated Perforations Diameter
5/16 in
Standard Features 0
Quick-release basket doorExternal blow-off gunDoor/blast interlockEasily unloaded hopper doorPrecision timer1/3-hp., DC variable drive (2 to 20 RPM)3-phase fan motorHeavy-duty conveying hoseLined, tunable reclaimer1" piping with general purpose filter, gauge and pressure regulatorElectrical control boxTwo, 90-watt interior lightsEasily accessed media hopperObservation windowCabinet and dust-collector leveling bolts
Warranty 0
BEST WARRANTY IN THE INDUSTRYThree-years limited on parts and laborEmpire Air-Blast ProductsA complete range of cabinetsRobotic, turntable and in-line automationBlast rooms and blast boothsPortable blastersA full line of parts and accessoriesNEVER USE SILICA SAND IN ANY EMPIRE EQUIPMENTInformation subject to change without notice.
