Empire Ergo-Blast Cabinets
Empire Ergo-Blast Cabinets
SKU:EMP-0ec9ef
Enhance productivity and comfort with Empire Ergo-Blast Cabinets for efficient blasting operations.
Regular price
$5,799.00
Regular price
Sale price
$5,799.00
Unit price
per
Initiate Order
Empire Ergo-Blast Cabinets
$5,799.00
Quantity: 1
Claim Your Seller Account
Empire Ergo-Blast Cabinets
$5,799.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

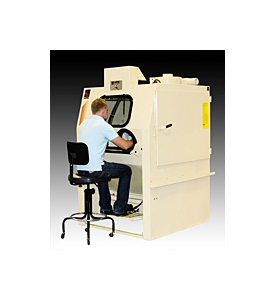

The Empire Ergo-Blast Cabinets are designed to reduce operator fatigue and extend productive working hours. These sit-down ergonomic cabinets feature a padded armrest, elevated foot rest for control, and top-entry piping to minimize arm stress. With features like sound dampening technology and front-mounted pressure regulator, these cabinets prioritize operator comfort during long blast cycles. Equipped with a tunable media reclaimer and a choice of pressure or suction blast systems, these cabinets meet the highest standards of durability, reliability, and performance required by manufacturers in diverse applications.
Product Specifications
Features Ergo Blast Cabinet Features
Ergo-Blast Cabinet Features
Popular Options 0

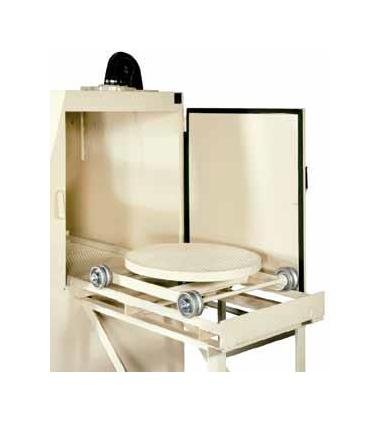

Cartridge & bag-house dust collectors capture 99% of all particles one micron or larger, normally permitting recirculation of air to the workplaceExtended-wear options prolong equipment life while minimizing maintenance and downtime. Options include: rubber curtains in black or white; window protectors; heavy-duty, media-conveying duct; and DiCarb® or boron nozzles. Reclaimers can be upgraded with replaceable wear plates and urethane or Ultrawear linings.Automatic bag shaker frees operator for other tasks with bag-house dust collectors.Fully automatic photohelic controls purge dust from cartridge type collectors without operator assistance.Rubber safety mats, placed around Ergo-Blast cabinets, keep the immediate work area clean and reduce operator fatigue.Turntables facilitate handling of heavy parts.
Specifications Ceramic Pressure Nozzle Diameter
3/16 in
Specifications Door Opening Height
32 in
Specifications Door Opening Width
41 in
Specifications Exhaust Fan Motor
1-1/2 hp | 2 hp
Specifications Interior Dimensions D X W X H
48 x 48 x 36 in
Specifications Overall Dimensions Cabinet D X W X H
50 x 54 x 72 in
Specifications Reclaimer Ventilation Rate
600 cfm | 900 cfm
Specifications Silicon Carbide Pressure Nozzle Diameter
5/16 in
Specifications Standard Number Of Doors
2
Standard Features 0
Sit-down configurationPadded exterior armrest with swivel controlGlove rings with interior armrestsElevated foot rest for control treadleTop-entry blast hoseFront-mounted pressure regulatorMedia-catch trays underneath doorsKleensweep⢠for improved visibilitySound attenuatorRubber, cloth-lined gloves90-watt spotlightsDust-off gunPneumatic foot-treadle control14 x 22" safety-glass windowGeneral purpose filterLeveling boltsOSHA door switch14-gauge construction3/16" perforated floor with 1000-lb capacitySure-Flo® media regulator (pressure systems)One-cubic-foot ASME pressure vessel (pressure systems)
Warranty 0
BEST WARRANTY IN THE INDUSTRYThree-years limited on partsEmpire Air-Blast ProductsA complete range of cabinetsRobotic, turntable and in-line automationBlast rooms and blast boothsPortable blastersA full line of parts and accessoriesNEVER USE SILICA SAND IN ANY EMPIRE EQUIPMENTInformation subject to change without notice.
