Empire Ergo-Blast Cabinets
Empire Ergo-Blast Cabinets
SKU:EMP-dc5c73
Boost productivity with Empire Ergo-Blast Cabinets - designed for operator comfort and performance. Choose from pressure or suction blast system options.
Regular price
$8,699.99
Regular price
Sale price
$8,699.99
Unit price
per
Initiate Order
Empire Ergo-Blast Cabinets
$8,699.99
Quantity: 1
Claim Your Seller Account
Empire Ergo-Blast Cabinets
$8,699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

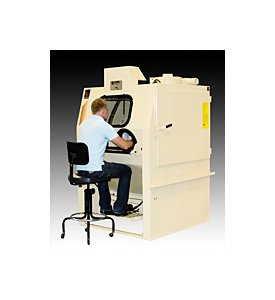

Enhance operator performance and comfort with Empire Ergo-Blast Cabinets, part of the Pro-Finish line. Designed for sit-down blasting, features include padded armrest, elevated foot rest, top-entry piping, and sound dampener. Choose between pressure or suction blast system, three dust collection methods, and various options for tailored applications. Additionally, meet stringent specifications such as Interior Dimensions of 36 x 60 x 36 in, equipped with Ceramic and Silicon Carbide Pressure Nozzles, and boasting a 99% particle capture rate for dust collectors.
Product Specifications
Features Ergo Blast Cabinet Features
Ergo-Blast Cabinet Features
Popular Options 0

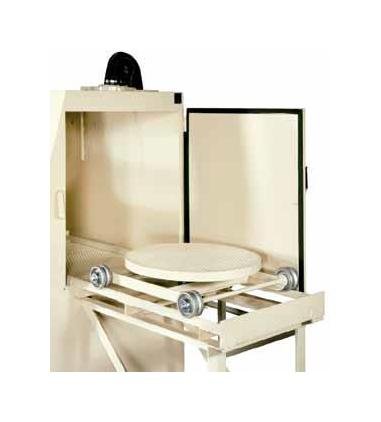

Cartridge & bag-house dust collectors capture 99% of all particles one micron or larger, normally permitting recirculation of air to the workplaceExtended-wear options prolong equipment life while minimizing maintenance and downtime. Options include: rubber curtains in black or white; window protectors; heavy-duty, media-conveying duct; and DiCarb® or boron nozzles. Reclaimers can be upgraded with replaceable wear plates and urethane or Ultrawear linings.Automatic bag shaker frees operator for other tasks with bag-house dust collectors.Fully automatic photohelic controls purge dust from cartridge type collectors without operator assistance.Rubber safety mats, placed around Ergo-Blast cabinets, keep the immediate work area clean and reduce operator fatigue.Turntables facilitate handling of heavy parts.
Specifications Ceramic Pressure Nozzle Diameter
3/16 in
Specifications Door Opening Height
32 in
Specifications Door Opening Width
29 in
Specifications Exhaust Fan Motor
1-1/2 hp | 2 hp
Specifications Interior Dimensions D X W X H
36 x 60 x 36 in
Specifications Overall Dimensions Cabinet D X W X H
38 x 66 x 72 in
Specifications Reclaimer Ventilation Rate
600 cfm | 900 cfm
Specifications Silicon Carbide Pressure Nozzle Diameter
5/16 in
Specifications Standard Number Of Doors
2
Standard Features 0
Sit-down configurationPadded exterior armrest with swivel controlGlove rings with interior armrestsElevated foot rest for control treadleTop-entry blast hoseFront-mounted pressure regulatorMedia-catch trays underneath doorsKleensweep⢠for improved visibilitySound attenuatorRubber, cloth-lined gloves90-watt spotlightsDust-off gunPneumatic foot-treadle control14 x 22" safety-glass windowGeneral purpose filterLeveling boltsOSHA door switch14-gauge construction3/16" perforated floor with 1000-lb capacitySure-Flo® media regulator (pressure systems)One-cubic-foot ASME pressure vessel (pressure systems)
Warranty 0
BEST WARRANTY IN THE INDUSTRYThree-years limited on partsEmpire Air-Blast ProductsA complete range of cabinetsRobotic, turntable and in-line automationBlast rooms and blast boothsPortable blastersA full line of parts and accessoriesNEVER USE SILICA SAND IN ANY EMPIRE EQUIPMENTInformation subject to change without notice.
